- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- LED Touchscreen Monitor

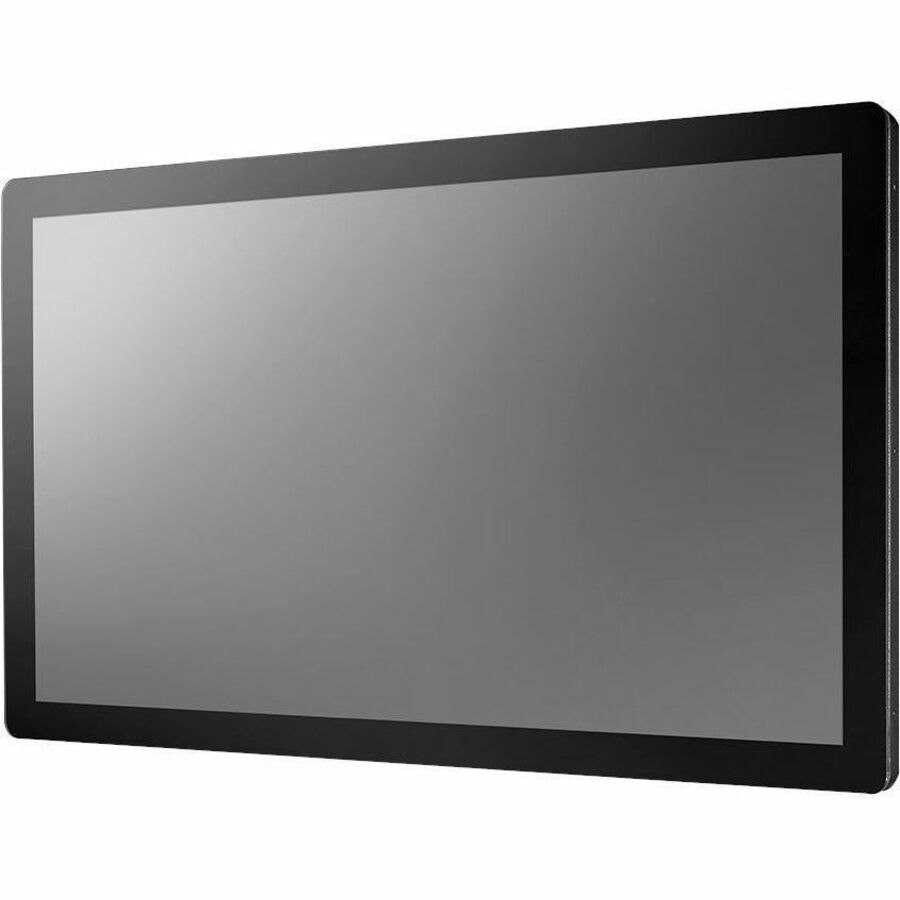

Advantech's IDP31-156W Proflat monitor meets demands for stylish contemporary public signage, medical, and POS applications. This solution features a flat, easy to clean/maintain glass surface with long-term product availability. IDP31-156W can be used in either portrait or landscape modes using a VESA mount. This solution's metal chassis creates a rugged and stable platform for a wide range of applications and solutions.
- Technical Information
- Screen Size Class
- 16"
- Viewable Screen Size
- 39.6 cm (15.6")
- Screen Mode
- WXGA
- Response Time
- 11 ms
- Mount Type
- Panel Mount
- Backlight Technology
- LED
- Features
- Bezel-less Design
- On-screen Display (OSD)
- Dust Resistant
- Water Proof
- Glass Hardness
- 7H
- Ingress Protection (IP) Rating
- IP67
- IP65
- Video
- Maximum Resolution
- 1366 x 768
- Colour Supported
- 16.2 Million Colours
- Native Contrast Ratio
- 600:1
- Brightness
- 500 cd/m²
- Touchscreen Information
- Touchscreen Type
- Projected Capacitive
- Multi-touch Screen
- Yes
- Number of Simultaneous Touchpoints
- 10
- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- Number of HDMI Inputs
- 1
- Total Number of HDMI Ports
- 1
- Number of USB Ports
- 1
- Environmental Conditions
- Operating Temperature Range
- -10°C to 55°C
- Physical Characteristics
- VESA Mount Compatible
- Yes
- Height
- 255.1 mm
- Width
- 405.8 mm
- Depth
- 46.1 mm
- Weight (Approximate)
- 3.20 kg
- Miscellaneous
- Package Contents
- IDP31-156W 15.6" Bezel-less Touch Monitor
- 1 x M cable USB-A(M)/USB-A(M) 180CM
- 1 x VGA cable 15P(M) 1.8 m (5.9 ft)
- 1 x Cable clamp
- 1 x Screw of cable clamp
- 2 x Cable tie
- 2 x Screw M3_6L
- 2 x USB cable clip
- 8 x Screw M4_30L
- 8 x Clamper
- HDMI cable 1.5 meter
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
