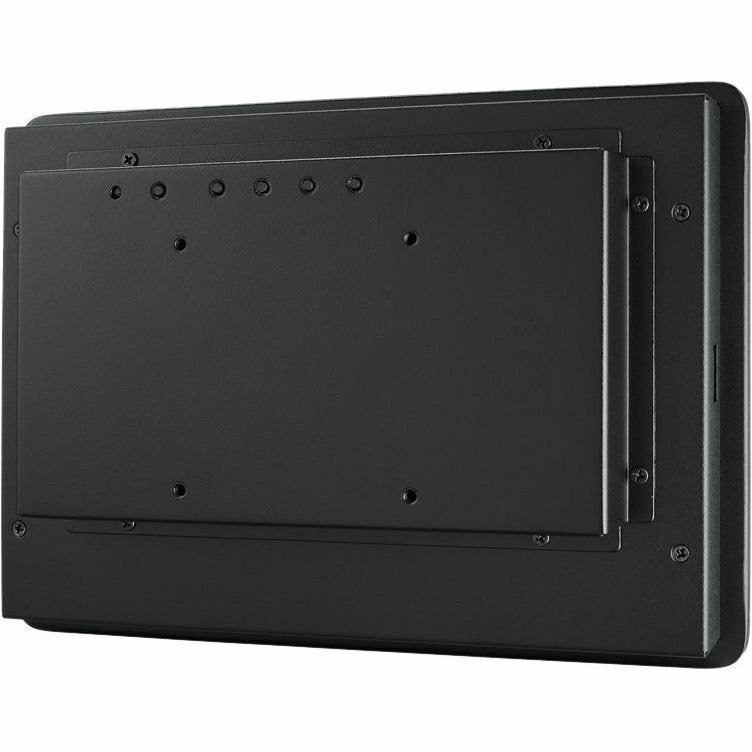

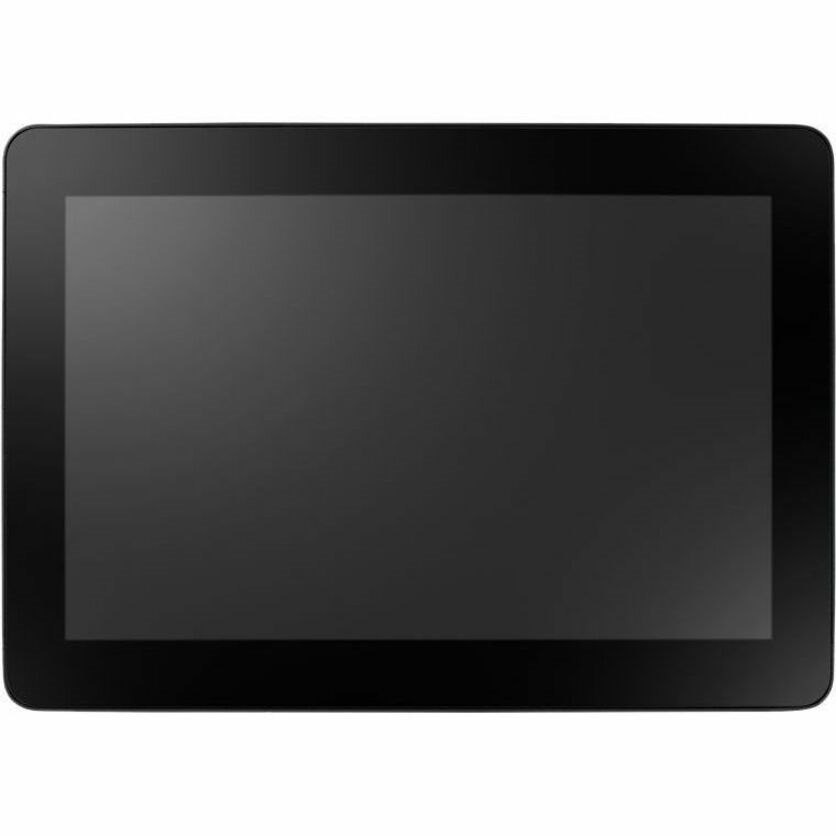

Advantech's IDP31-101W Proflat monitor meets demands for stylish contemporary public signage, medical, and POS applications. This solution features a flat, easy to clean/maintain glass surface with long-term product availability. IDP31-101W can be used in either portrait or landscape modes using a VESA mount. This solution's metal chassis creates a rugged and stable platform for a wide range of applications and solutions.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- IDP31
- Packaged Quantity
- 1
- Package Type
- Bulk
- Product Type
- LED Touchscreen Monitor
- Technical Information
- Screen Size Class
- 10"
- Viewable Screen Size
- 25.7 cm (10.1")
- Screen Mode
- WXGA
- Response Time
- 11 ms
- Horizontal Viewing Angle
- 170°
- Vertical Viewing Angle
- 170°
- Mount Type
- Panel Mount
- Backlight Technology
- LED
- Features
- Ultra Slim
- Bezel-less Design
- Anti-reflective
- On-screen Display (OSD)
- Glass Hardness
- 7H
- Ingress Protection (IP) Rating
- IP67
- Video
- Maximum Resolution
- 1280 x 800
- Colour Supported
- 16.2 Million Colours
- Native Contrast Ratio
- 800:1
- Brightness
- 500 cd/m²
- Touchscreen Information
- Touchscreen Type
- Projected Capacitive
- Multi-touch Screen
- Yes
- Number of Simultaneous Touchpoints
- 10

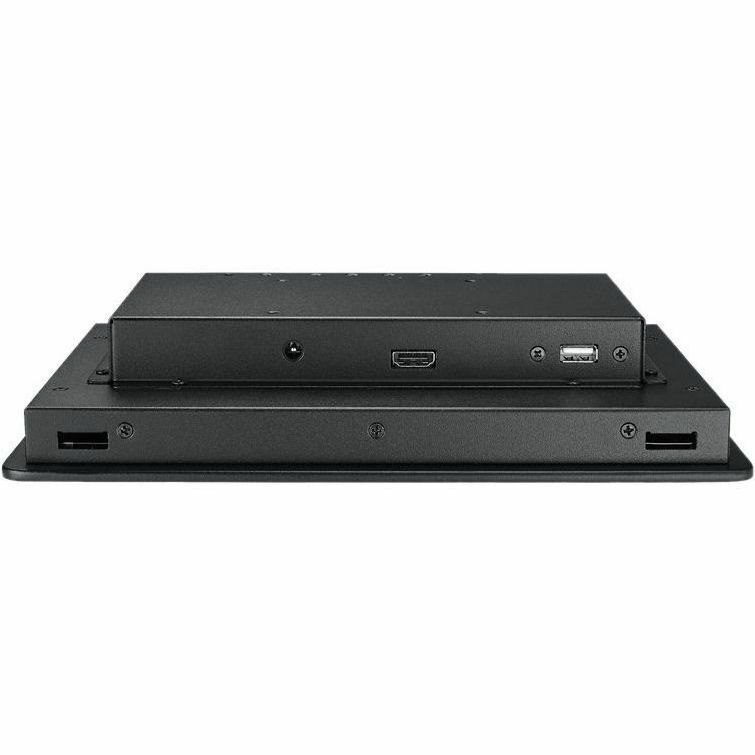

- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- Total Number of HDMI Ports
- 1
- Number of USB Ports
- 1
- Environmental Conditions
- Operating Temperature Range
- -20°C to 60°C
- Operating Humidity Range
- 10% to 90% (Non-condensing)
- Physical Characteristics
- VESA Mount Compatible
- Yes
- Height
- 180.6 mm
- Width
- 256.9 mm
- Depth
- 47.3 mm
- Weight (Approximate)
- 1.20 kg
- Miscellaneous
- Package Contents
- IDP31-101W 10.1" Bezel-less Touch Monitor
- 1 x M cable USB-A(M)/USB-A(M) 180CM
- HDMI cable 1.5 meter
- 8 x Screw M4_25L (2 are spare parts)
- 8 x Clamper (2 are spare parts)
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
