- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Ethernet Switch

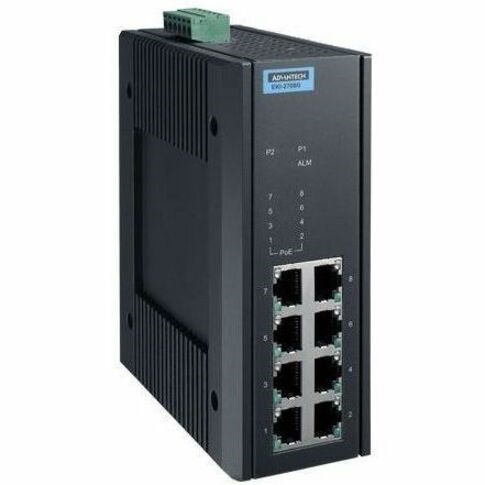

8GE Port Gigabit Unmanaged Industrial PoE Ethernet Switch
- 8 x Gigabit Ethernet ports
- Support 8 x IEEE 802.3at/af PoE ports for PD demands
- Up to 30W output per PoE port
- Supports jumbo frame transmission up to 9k bytes
- 12 ~ 48 VDC redundant dual power input and 1 relay output
- Wide operating temperature range of -40 ~ 75°C
- Supports EMC Level 4 protection for extreme outdoor environments
- Supports LAN surge protection up to ±6 kV
- Equipped with a pull-down DIN rail mounting kit for easy installation across various DIN rail dimensions
- Technical Information
- Features
- Surge Protection
- IP30
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Network Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Maximum Data Transfer Rate
- 128 MB/s
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3at
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3z
- Management & Protocols
- Manageable
- No
- Reliability
- MTBF
- 1074022 Hour
- Power Description
- PoE (RJ-45) Port
- Yes
- Input Voltage
- 12 V DC
- 48 V DC
- Power Source
- DC
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 5.28 W
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Enclosure
- Height
- 140 mm
- Width
- 55.9 mm
- Depth
- 129.8 mm
- Weight (Approximate)
- 1.10 kg
- Miscellaneous
- Application/Usage
- Network
- Industrial
- Outdoor
