- General Information
- Manufacturer
- Allied Telesis, Inc
- Manufacturer Website Address
- http://www.alliedtelesis.co.uk
- Brand Name
- Allied Telesis
- Product Line
- SwitchBlade
- Product Type
- Switch Chassis

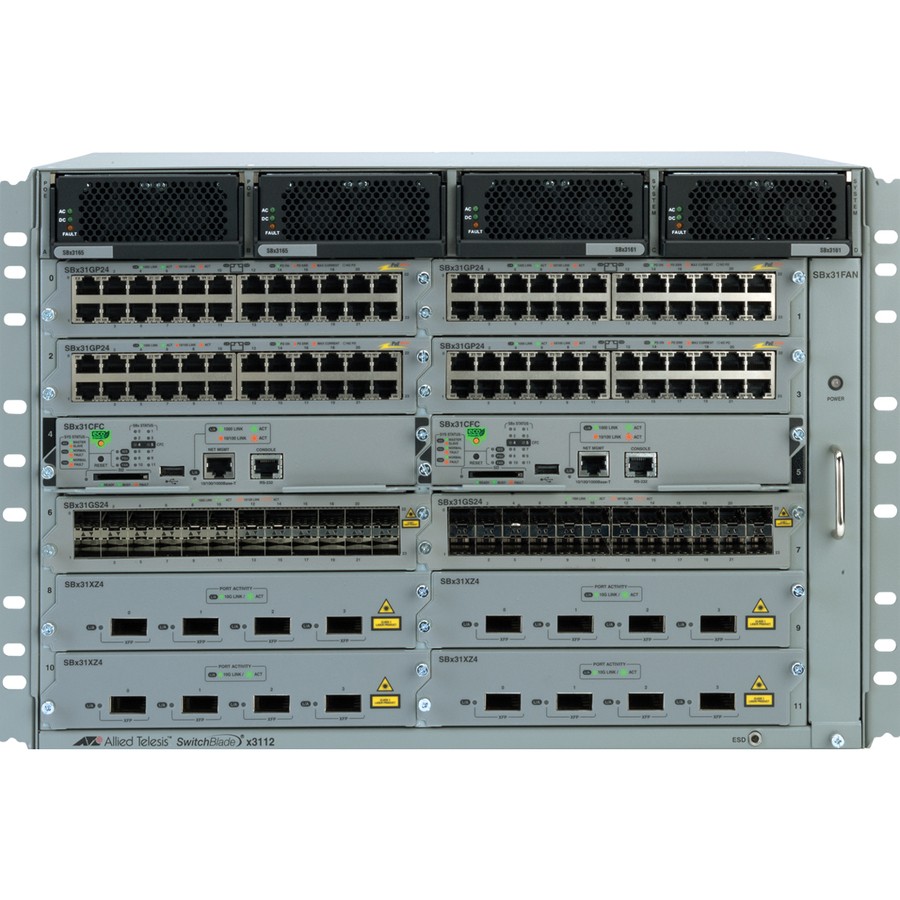

The SwitchBlade x3112 is a 12 Slot Access Edge Chassis Switch primarily targeted for service provider fber access networks, and equally at home at the enterprise network edge and the data center. The switch was designed to deliver high availability, maximum performance with wire speed non-blocking backplane performance, and high port count.
- I/O Expansions
- Total Number of Expansion Slots
- 12.0
- Expansion Slot Type
- Line Card
- Network & Communication
- Layer Supported
- 2
- Management & Protocols
- Manageable
- Yes
- Management
- Command Line Interface
- RMON 1, 2, 3, 9
- SNMP v1, 2c
- Telnet
- MIB
- Syslog
- QoS
- VLAN
- Power Description
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Compatible Rack Unit
- 7U
- Form Factor
- Rack-mountable
- Height
- 310.1 mm
- Width
- 480.3 mm
- Depth
- 387.9 mm
- Weight (Approximate)
- 17.74 kg
