- General Information
- Manufacturer
- Allied Telesis, Inc
- Manufacturer Website Address
- http://www.alliedtelesis.co.uk
- Brand Name
- Allied Telesis
- Product Type
- Router Chassis

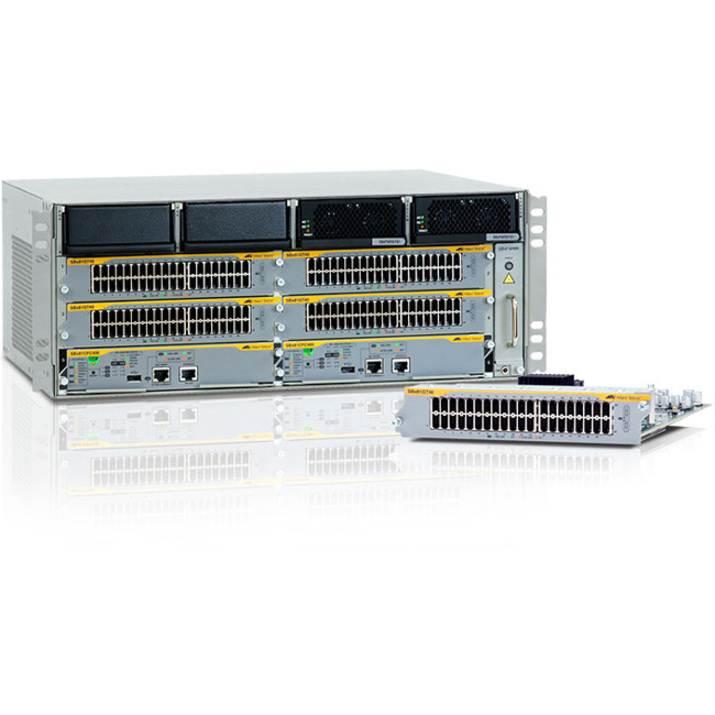

Slots 1 to 4 are for the Ethernet line cards. The cards may be installed in any order or variety in the slots.

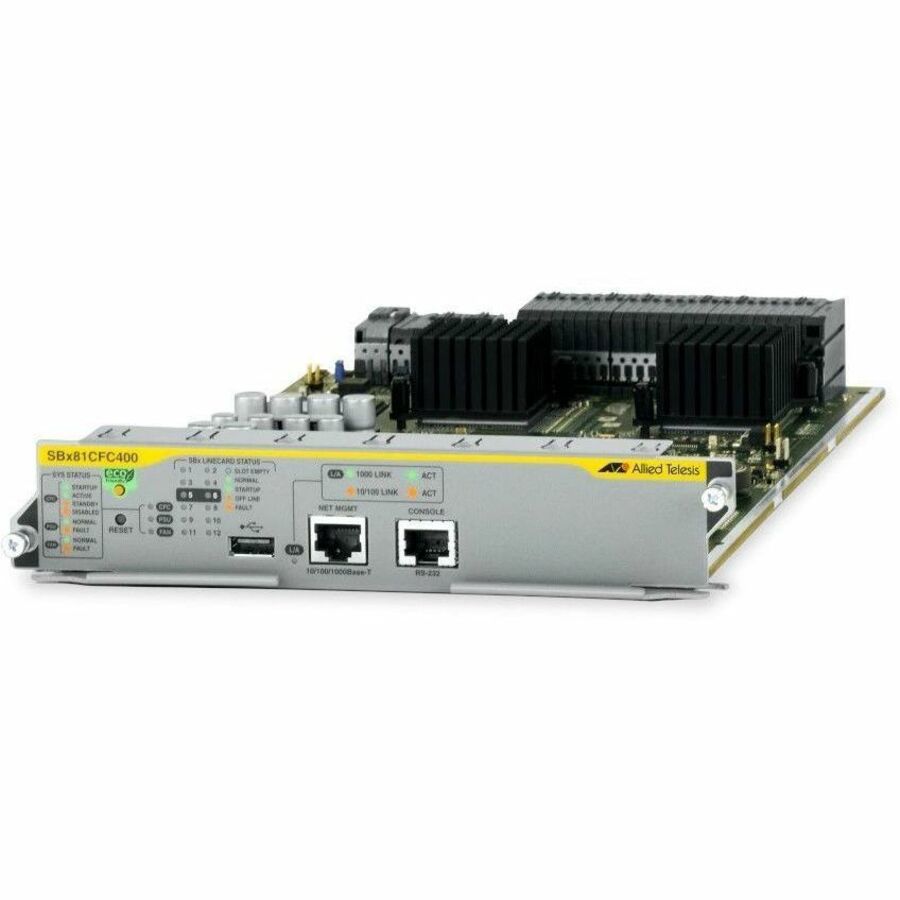

Slots 5 and 6 are for the AT-SBx81CFC400 Controller Fabric Card. The chassis must be at least one controller card. You may add a second controller to add redundancy or to increase the available backplane bandwidth of the chassis. The chassis has a backplane bandwidth of 40 Gbps per slot with one controller card and 80 Gbps per slot with two cards.
- Interfaces/Ports
- USB
- No
- Powerline
- No
- Management Port
- No
- Token Ring Port
- No
- Serial V.35 Interface
- No
- I/O Expansions
- Total Number of Expansion Slots
- 6
- Expansion Slot Type
- Line Card
- Switch Fabric Card
- Physical Characteristics
- Compatible Rack Unit
- 4U
- Form Factor
- Rack-mountable
- Height
- 176.3 mm
- Width
- 480.3 mm
- Depth
- 387.9 mm
- Weight (Approximate)
- 14.42 kg
