- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Galaxy PW 2nd Gen
- Packaged Quantity
- 1 Pack
- Product Type
- Double Conversion Online UPS

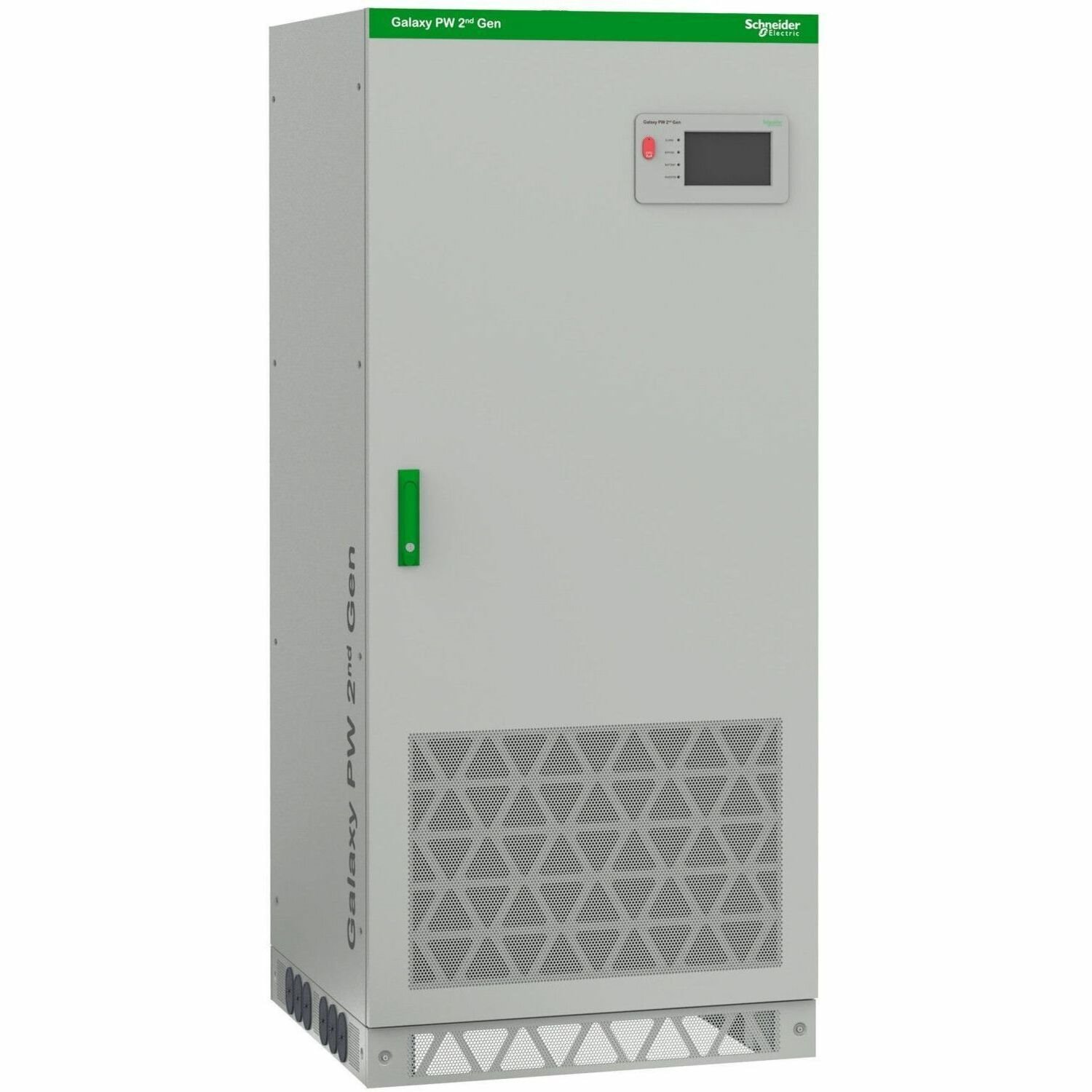

Transformer-based 40 kVA 3-phase input, single-phase output UPS with 6-pulse SCR technology and a 384 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5x8 start-up service
- Technical Information
- Phase
- Three Phase
- Application/Usage
- Industrial
- Power Description
- Load Capacity (VA)
- 40 kVA
- Load Capacity (Watt)
- 32 kW
- Input Voltage
- 400 V AC
- 380 V AC
- 415 V AC
- Output Voltage
- 230 V AC
- 220 V AC
- 240 V AC
- Input Frequency
- 45 Hz
- 55 Hz
- Output Frequency
- 50 Hz
- Input Current
- 92 A
- Waveform Type
- Sine Wave
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- Web/SNMP
- Telnet
- Battery Information
- DC System Voltage
- 384 V DC
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Maximum Operating Elevation
- 2 km
- Maximum Storage Elevation
- 10 km
- Operating Humidity
- 0% - 95%
- Storage Relative Humidity
- 0% - 95%
- Sound Emission
- 70 dB
- Thermal Dissipation
- 9192 BTU/h
- Physical Characteristics
- Color Family
- Grey
- Product Color
- Light Grey
- Form Factor
- Tower
- Height
- 1800 mm
- Width
- 800 mm
- Depth
- 800 mm
- Weight (Approximate)
- 579 kg
