- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- MGE Galaxy
- Product Type
- Double Conversion Online UPS
Simplicity you can trust

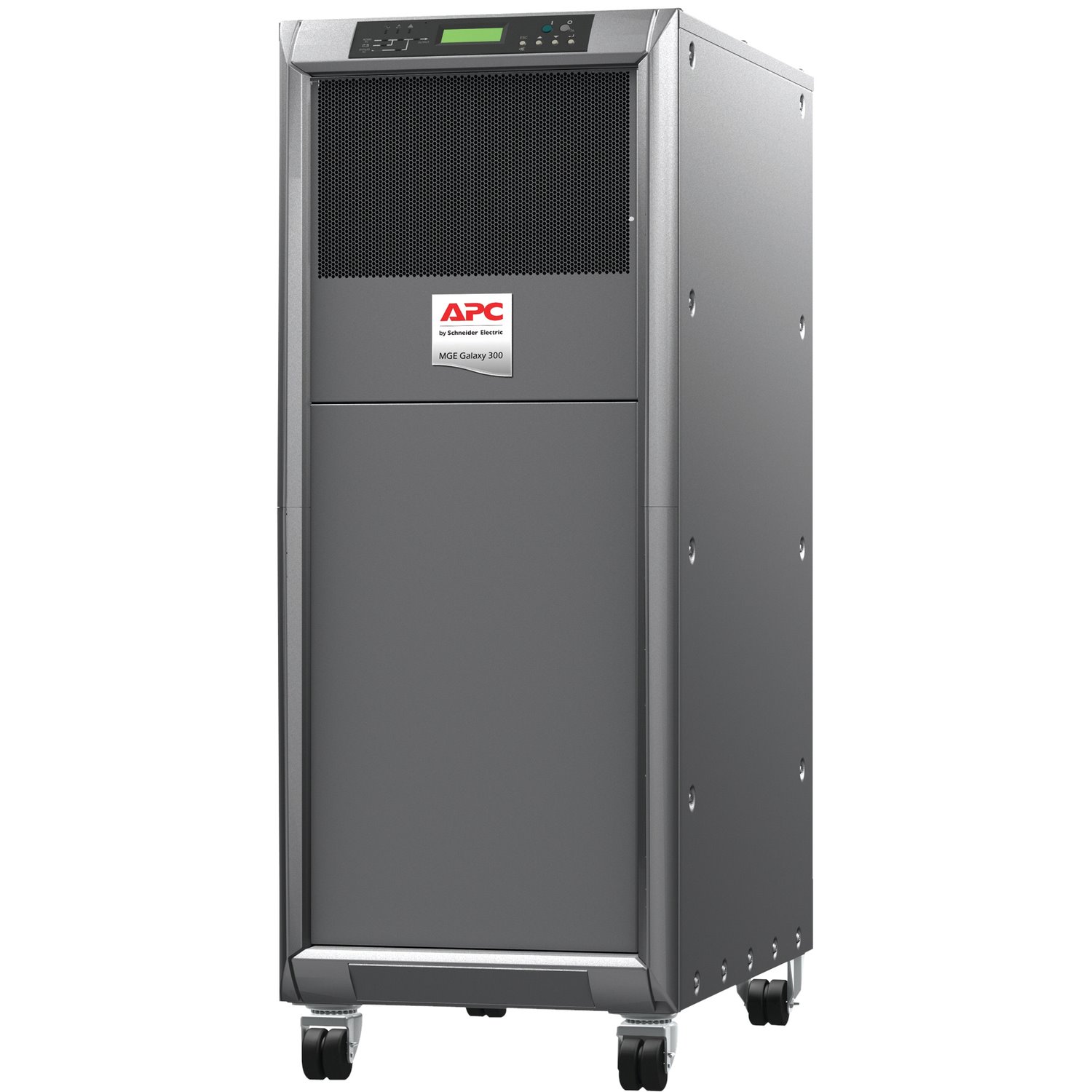

The MGE Galaxy 300 provides trusted and reliable power supply protection for small data centers, commercial buildings and technical facilities. The on-line double conversion topology supplies true isolation between input and output with a zero transfer time. Up to 30 minutes of integrated battery backup, internal mechanical bypass and parallel capability allows for higher levels of availability. Remote and local monitoring/management capability is achieved through a simple Web/SNMP interface and a user friendly display available in 14 languages. Both three to three (3:3) and three to single (3:1) phase configurations are available for convenient power distribution. Serviceability is greatly enhanced by front panel access for ease of maintenance in confined spaces. All these features along with the included Start-Up and On-Site warranty service make the Galaxy 300 the easiest UPS in its class to install, manage and maintain.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Plug/Connector Type
- Hard Wire 5-wire
- Receptacle Type
- Hard Wire 3-wire
- Receptacle Detail
- 1 x Hard Wire 3-wire
- Power Description
- Load Capacity (VA)
- 10 kVA
- Input Voltage
- 220 V AC
- Output Voltage
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 65 Hz
- Output Frequency
- 60 Hz
- Management
- Network Management
- SNMP Manageable
- Bypass Switch
- Maintenance
- Emergency Power OFF
- Yes
- Interfaces/Ports
- Modular Slots
- SmartSlot
- Battery Information
- Battery Characteristics
- Spill-proof/Maintenance-free
- Battery Chemistry
- Lead Acid
- Typical Battery Recharge Time
- 10 Hour
- Physical Characteristics
- Form Factor
- Tower
- Height
- 1300 mm
- Width
- 400 mm
- Depth
- 860 mm
- Weight (Approximate)
- 320 kg
- Miscellaneous
- For Country/Region
- Europe
- Package Contents
- MGE Galaxy 300 10kVA 400V 3:1 with 30min Battery, Start-Up 5x8
- Installation Guide
- User Manual
- Software CD
- Network Management Card
- Start-Up Service
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
