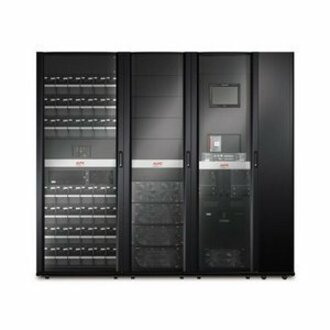

Scalable, high-efficiency 3-phase UPS with integrated maintenance bypass & sub-feed distribution. This system scales as your data center grows up to 250kW/250kVA. To support additional growth, this UPS can be easily expanded to scale to 500kW and supports up to four systems in parallel. Suitable for medium & large data center applications.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Symmetra
- Product Series
- PX
- Product Type
- Delta Conversion Online UPS
- Technical Information
- Receptacle Type
- Hard Wire 4-wire
- Hard Wire 5-wire
- Receptacle Detail
- 1 x Hard Wire 4-wire
- 1 x Hard Wire 5-wire
- Power Description
- Load Capacity (VA)
- 100 kVA
- Input Voltage
- 220 V AC
- Output Voltage
- 480 V AC
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Management
- Network Management
- SNMP Manageable
- Bypass Switch
- Maintenance
- Static
- Interfaces/Ports
- Modular Slots
- 6 x Battery
- 3 x SmartSlot
- Battery Information
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 7.80 Minute
- Backup/Run Time (Half Load)
- 23.80 Minute
- Typical Battery Recharge Time
- 8 Hour
- Physical Characteristics
- Form Factor
- Tower
- Height
- 1991.1 mm
- Width
- 2350 mm
- Depth
- 1066.8 mm
- Weight (Approximate)
- 2627.21 kg
- Miscellaneous
- Additional Information
- Bypass Voltage Tolerance: +/-10% settable from +/-4/6/8 and 10%
- Max Configurable Power: 500 kW / 500 kVA
- Input voltage range for main operations: 408 - 552 (480)V
- Energy Star
- Yes
