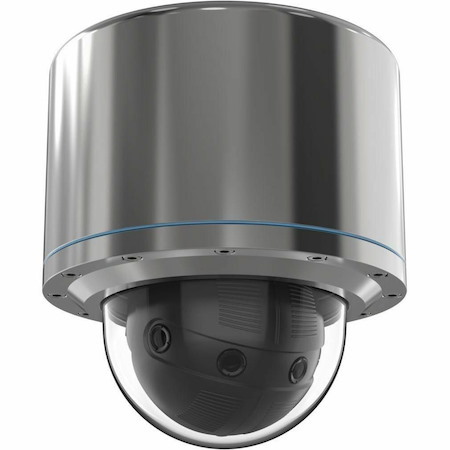

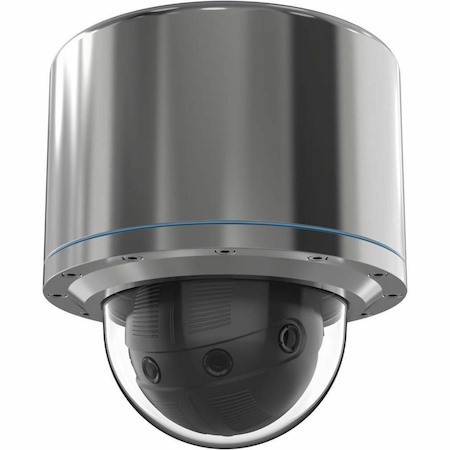

AXIS ExCam XF P3807 8 Megapixel Outdoor Network Camera - Colour - Dome - Silver - TAA Compliant

  • Part: 1678071
  • Model: 02822-001
£16,738.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Axis Communications
    • Manufacturer Website Address
    • http://www.axis.com/uk
    • Brand Name
    • AXIS
    • Product Line
    • ExCam XF
    • Product Type
    • Network Camera

Integrated in a heavy-duty stainless steel housing, this explosion-protected camera delivers 180° panoramic overviews with excellent images and no blind spots. It gives the operator a complete overview of the area for improved situational awareness.

Tough in hazardous areas

This explosion-protected camera is certified with ATEX, IECEx, INMETRO Zone 1/21 for use in explosion-prone applications. It comes integrated in a heavy-duty stainless-steel housing. And with IP67 and IP68 ratings, it's protected against the ingress of dust and can withstand high waves and gales- ideal in harsh environments. This camera is perfect when you need to see the whole picture. It offers 180° panoramic coverage with complete 90° vertical coverage so you don't have to worry about blind spots and can be sure of capturing all the details and everything that's happening around you.

See the whole picture

This 8-megapixel multi sensor camera offers seamless 180° panoramic coverage and captures high quality forensic images up to 30 fps. It acts as a single camera in your video management software (VMS) as it combines four images into one. This helps save time on installation and it only requires one single license. What's more, Forensic WDR and Axis Lightfinder ensure clear, sharp images even in challenging light.

Flexible installation

ExCam XF P3807 is powered by PoE with just one Ethernet cable for power and network access. This cost-effective camera offers four sensors built into one camera. And with seamless stitching of all four images the operator has a complete overview of the area for improved situational awareness. Plus, there's only one camera to install and manage in the video management system (VMS). Axis Zipstream significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, thanks to Axis open interfaces, it's easy to integrate with existing surveillance system.

  • Warranty
    • Limited Warranty
    • 5 Year

  • Technical Information
    • HD Recording
    • Yes
  • Display & Graphics
    • Image Sensor Type
    • RGB CMOS
    • Image Sensor Size
    • 1/2.9"
    • Colour Supported
    • Colour
    • Field of View
    • Horizontal field of view 180 ° Vertical field of view 90 °
    • Effective Camera Resolution
    • 8 Megapixel
    • Number of Sensors
    • 4
  • Video
    • Video Formats
    • Zipstream
    • H.264B
    • H.264H
    • H.264M
    • Motion JPEG
    • H.264B (MPEG-4 Part 10/AVC)
    • H.264M (MPEG-4 Part 10/AVC)
    • H.264H (MPEG-4 Part 10/AVC)
    • Maximum Video Resolution
    • 4320 x 1920
    • Maximum Frame Rate
    • 30 fps
  • Lens
    • Lens Type
    • Fixed
    • Maximum Focal Length
    • 3.20 mm
    • Lens Included
    • Yes
    • Maximum Aperture
    • f/2.0
  • Exposure
    • Shortest Shutter Speed
    • 1/33500 Second
    • Longest Shutter Speed
    • 1/10 Second
  • Network & Communication
    • Connectivity Technology
    • Wired
    • Ethernet Technology
    • Fast Ethernet
    • Protocols
      • RTSP
      • RTP
      • SRTP/RTSPS
      • TCP
      • UDP
      • IGMPv1/v2/v3
      • ICMPv6
      • DHCP
      • ARP
      • SSH
      • LLDP
      • CDP
      • MQTT v3.1.1
      • Syslog
      • ONVIF
      IPv4
    • IPv6 USGv6
    • ICMPv4/ICMPv6
    • HTTP
    • HTTPS
    • TLS
    • QoS
    • FTP
    • SFTP
    • CIFS/SMB
    • SMTP
    • mDNS (Bonjour)
    • UPnP
    • SNMPv1/v2c/v3 (MIB2)
    • DNS/DNSv6
    • DDNS
    • NTP
    • NTS
    • Remote Management
    • Yes
  • Storage
    • Storage Type
    • Memory Card
  • Power Description
    • Power Source Type
    • PoE
  • Physical Characteristics
    • Form Factor
    • Dome
    • Durability
    • Explosion Resistant
    • Dust Resistant
    • Color Family
    • Silver
    • Product Color
    • Silver
    • Height
    • 378 mm
    • Diameter
    • 195 mm
    • Weight (Approximate)
    • 16 kg
  • Environmental Conditions
    • Minimum Operating Temperature
    • -50°C
    • Maximum Operating Temperature
    • 60°C
  • Miscellaneous
    • Features
    • Wide Dynamic Range
    • Ingress Protection
    • Video Management System
    • Day/Night
    • Privacy Masking
    • Indoor/Outdoor
    • Outdoor
    • Package Contents
      • ExCam XF P3807 Explosion-Protected Panoramic Camera
      • Installation guide
      • Windows decoder 1-user license
      • AXIS Surveillance microSDXC Card 128 GB
      • Owner authentication key
    • Ingress Protection Rating
    • IP67
    • IP68
    • IP66
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Restriction of Hazardous Substances (RoHS)
