- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com/uk
- Brand Name
- AXIS
- Product Series
- Q60
- Marketing Information

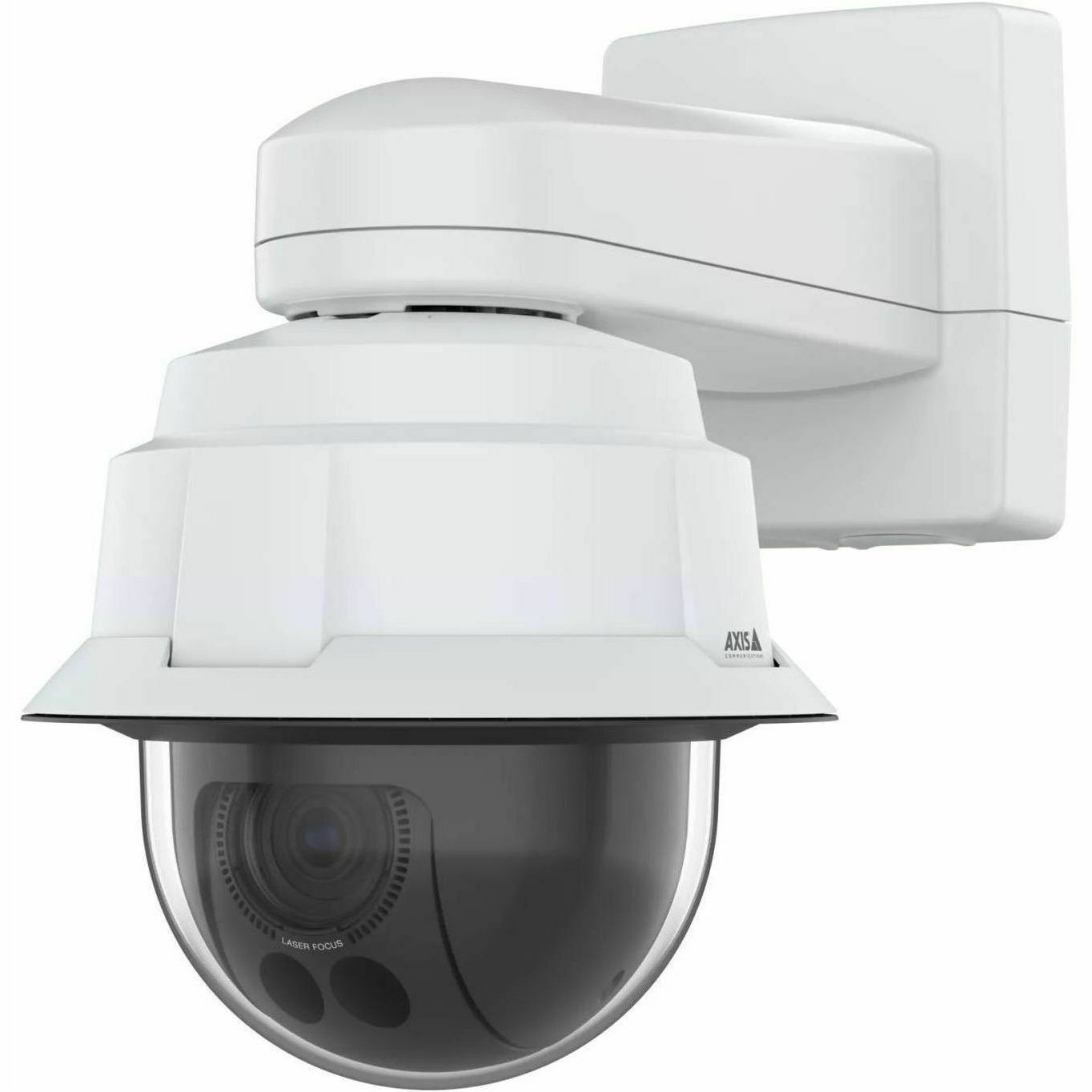

Iconic PTZ with 4 MP and great light sensitivity
AXIS Q6086-E features an extremely light-sensitive ½" sensor, 34x optical zoom, and laser focus. Built on ARTPEC-9, it supports AV1 codec and offers accelerated performance to run impressive analytics applications on the edge. For instance, AXIS Object Analytics can detect and classify different objects. This IP66-, IK10-, NEMA 4x-, and NEMA TS2- rated camera is both impact and weather-resistant. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements. Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access
- Highly light-sensitive 1/2" sensor
- Lightfinder 2.0 and Forensic WDR
- Next-generation AI-powered analytics
- Precise laser focus and 34x optical zoom
- Built-in cybersecurity with Axis Edge Vault
- Product Type
- Network Camera
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Type
- Infrared
- Camera Iris
- P-iris
- AI-powered
- Yes
- Infrared (IR) Cut-off Filter
- Yes
- Languages Support
- Czech
- Swedish
- Finnish
- Turkish
- Thai
- Vietnamese
- German
- French
- Spanish
- Italian
- Russian
- Simplified Chinese
- Japanese
- Korean
- Portuguese
- Polish
- Traditional Chinese
- Dutch
- Wide Dynamic Range (WDR)
- Yes
- Wide Dynamic Range Detail
- 120 dB
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2"
- Colour Supported
- Colour
- Field of View
- Horizontal field of view: 61.5°-2.0° Vertical field of view: 37.3°-1.1°
- Video
- Video Formats
- H.264B (MPEG-4 Part 10/AVC)
- H.264M (MPEG-4 Part 10/AVC)
- H.264H (MPEG-4 Part 10/AVC)
- H.265 (MPEG-H Part 2/HEVC)
- Motion JPEG
- Zipstream
- H.265
- H.264
- H.264H
- H.264B
- H.264M
- Maximum Video Resolution
- 2688 x 1512
- Maximum Frame Rate
- 60 fps
- Audio
- Audio Support
- Yes
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 6.64 mm
- Maximum Focal Length
- 225.55 mm
- Lens Included
- Yes
- Minimum Aperture
- f/5.1
- Maximum Aperture
- f/1.7
- Optical Zoom
- 34x
- Exposure
- Shortest Shutter Speed
- 1/49500 Second
- Longest Shutter Speed
- 2 Second
- PTZ Modes
- Preset Point
- Digital PTZ
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet Technology
- Gigabit Ethernet
- Protocols
- IPv4
- IPv6 USGv6
- ICMPv4/ICMPv6
- HTTP
- HTTPS
- HTTP/2
- TLS
- FTP
- SFTP
- CIFS/SMB
- SMTP
- mDNS (Bonjour)
- UPnP
- SNMP (v1/v2/v3)
- SNMP (MIB-2)
- DNS/DNSv6
- DDNS
- NTP
- NTS
- RTSP
- RTP
- SRTP/RTSPS
- TCP
- UDP
- IGMPv1/v2/v3
- RTCP
- ICMP
- DHCPv4/v6
- ARP
- SSH
- LLDP
- CDP
- MQTT v3.1.1
- UDP/TCP/TLS
- ZeroConf
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Internal Memory
- 4 GB
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 51 W
- Power Source Type
- PoE
- Physical Characteristics
- Form Factor
- Dome
- Durability
- Impact Resistant
- Weather Resistant
- Color Family
- White
- Product Color
- White
- Product Material
- Polycarbonate
- Aluminium
- Weight (Approximate)
- 4.10 kg
- Environmental Conditions
- Minimum Operating Temperature
- -20°C
- Maximum Operating Temperature
- 55°C
- Minimum Storage Temperature
- -40°C
- Maximum Storage Temperature
- 65°C
- Minimum Operating Humidity (Condensing)
- 10%
- Maximum Operating Humidity (Condensing)
- 100%
- Minimum Storage Humidity (Non-condensing)
- 5%
- Maximum Storage Humidity (Non-condensing)
- 95%
- Miscellaneous
- Features
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- 3D Digital Noise Reduction
- 2D Digital Noise Reduction (2DNR)
- Wide Dynamic Range
- Audio Compression
- Human Detection
- Face Detection
- Vehicle Detection
- Active Tampering Alarm
- Indoor/Outdoor
- Indoor/Outdoor
- Package Contents
- Q6086-E PTZ Camera
- Weathershield
- Installation guide
- 90 W Midspan (including power cable
- RJ45 Push-pull Connector (IP66)
- Owner Authentication Key
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
- IP67
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
