- General Information
- Manufacturer
- Bixolon America, Inc
- Manufacturer Website Address
- http://www.bixolon.com
- Brand Name
- Bixolon
- Product Type
- Direct Thermal/Thermal Transfer Printer
User-Friendly Design
- Compact and robust design
- Rugged all-metal case and double folding door
- Side-loading supplies path for simplified media and ribbon installation
- 2.4 inch full colour LCD display
- Peeler and Auto Cutter, and factory-installed Rewinder with Peeler options
- Toolless maintenance of roller and print head
- Supporting up to 450 m ribbon length
Industrial-Standard Performance
- Fast data processing and print speeds of up to 8 ips (203 mm/sec)
- Optional 203 or 300 dpi high resolutions
- Fully compatible with market-leading programming languages
- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.2 (MFi certified)
Secure and Efficient Management
- Twin funtion™ supported: Copy printer settings and data via USB
- Compatible with label design software; BIXOLON's Label Artist™ and Seagull's BarTender®
- XPM™ & XCM™ - Web-based printer management software and connection app
- Technical Information
- Recommended Use
- Label/Receipt Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 152 mm/s
- Maximum Print Resolution (dpi)
- 300
- Maximum Print Length
- 2000 mm
- Maximum Print Width
- 105.70 mm (4.16")
- Barcode Symbology Supported
- QR Code
- PDF417
- Maxi Code
- GS1 DataBar
- Data Matrix
- Aztec Code
- EAN-8
- EAN-13
- ITF
- UPC-A
- UPC-E
- Code 128
- Code 39
- Code 93
- Codabar
- Code 11
- Industrial 2 of 5
- LOGMARS
- MSA
- Plessey
- POSTNET
- GS1 DataBar (RSS-14)
- IMB
- TLC 39
- Code 49
- AZTEC
- UPC/EAN
- Interleaved 2 of 5
- 1D
- 2D
- Real Time Clock
- Yes
- Application/Usage
- Government
- Manufacturing
- Warehouse
- Logistic
- Industrial
- Features
- Compact
- Rugged
- Robust
- Connectivity Technology
- Wired & Wireless
- Fonts Included
- 10 SLCS
- 16 BPL-Z
- 5 BPL-E
- 1 SLCS
- 1 BPL-Z
- UTF-8
- UTF-16LE
- UTF-16BE
- Print Technology
- Direct Thermal /Thermal Transfer
- Memory
- Standard Memory
- 128 MB
- Flash Memory
- 128 MB
- Interfaces/Ports
- Serial Port
- Yes
- USB Host
- Yes
- USB
- Yes
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Bluetooth
- Yes
- Bluetooth Version
- 5.2
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11a/b/g/n
- Wi-Fi Direct
- Yes
- Display & Graphics
- Display Screen
- Yes
- Screen Size
- 6.1 cm (2.4")
- Display Screen Type
- LCD
- Media Types & Handling
- Media Type
- Label
- Receipt
- Gap
- Black Mark
- Fanfold
- Continuous Label
- Notch
- Media Sensor
- Head Open Sensor
- Reflective Media Sensor
- Transmissive Media Sensor
- Ribbon Low/End Sensor
- Media Thickness
- 250 µm
- Maximum Roll Diameter
- 203 mm
- Maximum Label Width
- 114 mm
- Fonts & Emulation
- Language Emulation
- BPL-E
- BPL-Z
- SLCS
- Power Description
- Power Source
- Power Adapter
- AC
- Frequency
- 60 Hz
- 50 Hz
- Environmental Conditions
- Operating Temperature
- 5°C - 40°C
- Operating Relative Humidity
- 10% - 80%
- Storage Temperature
- -20°C - 60°C
- Storage Relative Humidity
- 10% - 90%
- Physical Characteristics
- Height
- 276.7 mm
- Width
- 240 mm
- Depth
- 430.5 mm
- Weight (Approximate)
- 9.30 kg
- Miscellaneous
- Package Contents

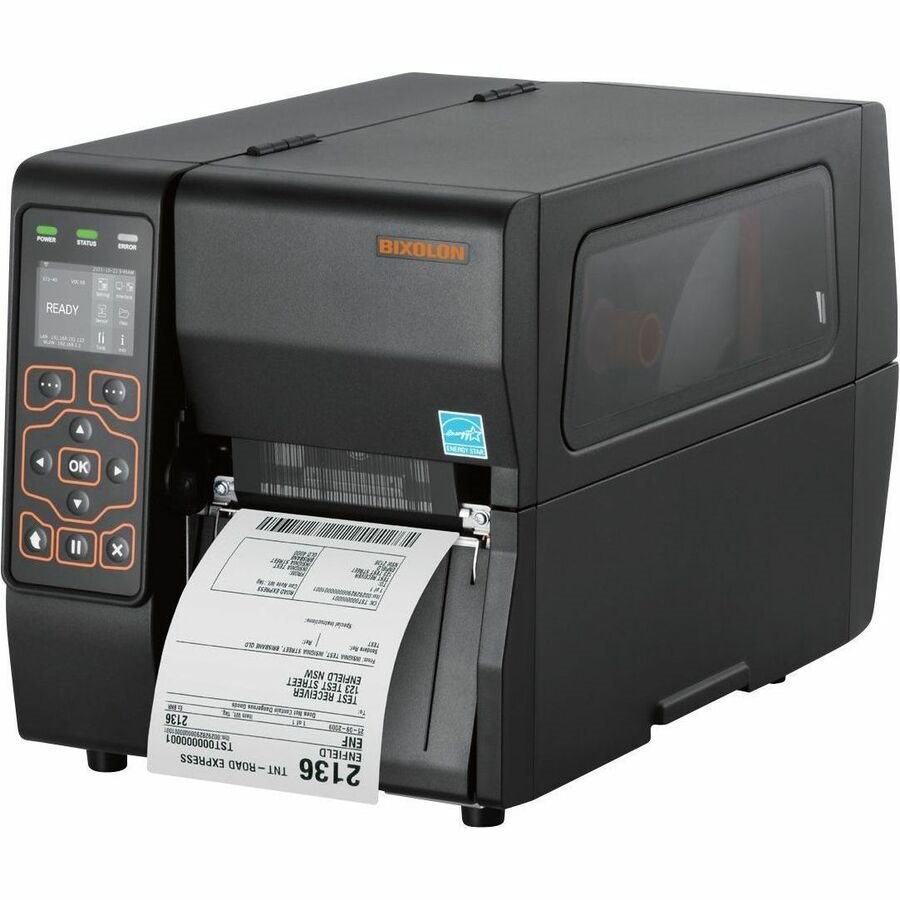

- XT3-43 Direct Thermal/Thermal Transfer Printer
- USB Cable
- Cables Included
- USB
- Energy Star
- Yes
