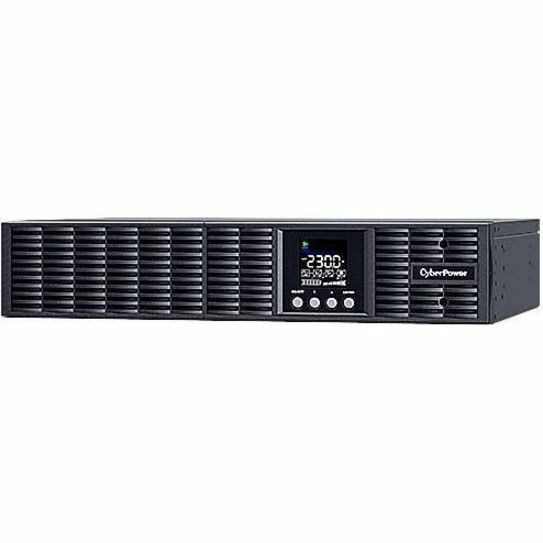

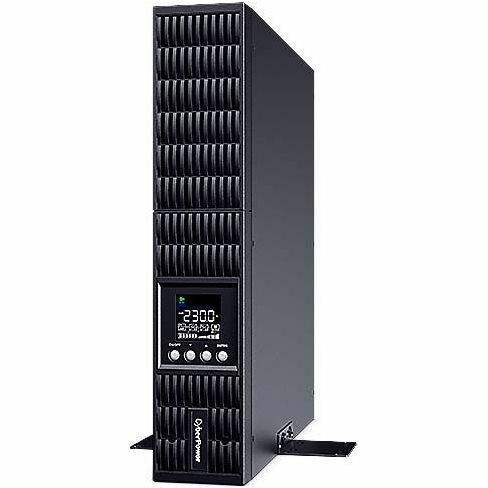

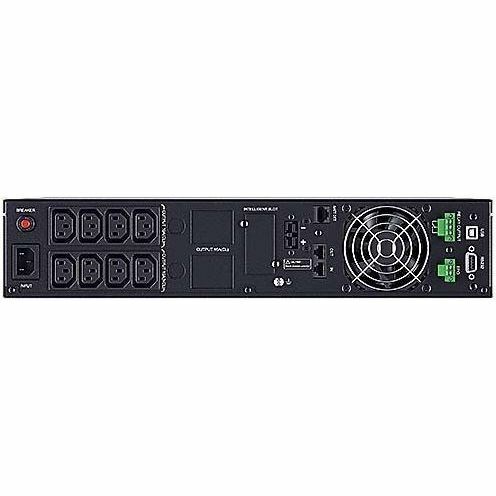

CyberPowerOLS1500ERT2UA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated in the back office, server room, and data center environment.
The UPS features color LCD panel for users to monitor power system and configure settings easily. This model can be used with compatible Extended Battery Modules (EBM) to prolong system runtime during power interruption. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users. The product also supports power management software to perform real-time monitoring and remote management.
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Line
- Online S
- Product Type
- Double Conversion Online UPS
- Technical Information
- Plug/Connector Type
- IEC 60320 C14
- Receptacle Type
- IEC 60320 C13
- Receptacle Detail
- 8 x IEC 60320 C13
- Number of Battery & Surge Outlets
- 8
- Number of Critical Load Outlets
- 4
- Dataline Protection
- RJ-11/RJ-45
- Overload Protection
- Yes
- Cord Length
- 1.50 m
- Transfer Time
- 0 ns
- EMI/RFI Noise Filter
- Yes
- Phase
- Single Phase
- Application/Usage
- Mission Critical Equipment
- Server
- DVR
- Surveillance System
- Transportation
- Infrastructure
- Emergency System
- Office
- Server Room
- Data Center
- Generator
- Critical & Non-critical Load
- Phone
- Modem
- Fax Machine
- DSL
- Network
- Surge Suppression
- Yes
- Power Description
- Load Capacity (VA)
- 1.50 kVA
- Load Capacity (Watt)
- 1.35 kW
- Input Voltage
- 230 V AC
- Input Voltage Range
- 190 V AC - 300 V AC
- Input Current
- 9 A
- Output Voltage
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 50 Hz
- 60 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Pure Sine Wave
- Surge Energy Rating
- 363 J
- Input Power Factor
- 0.99
- Output Power Factor
- 0.9
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- Dry Contact
- SNMP/HTTP Remote Monitoring
- Alarm
- Battery Mode
- Low Battery
- Overload
- Over-charge
- Overheat
- Fault
- Replace Battery
- Controls/Indicators
- Status Indicators
LCD Information:
- Operation Type
- Power Status
- Battery Status
- Load Status
- Fault & Warning
- Other Information
- Event & Log
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- EPO Port
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- DC System Voltage
- 48 V DC
- Number of Batteries
- 4
- Battery Characteristics
- Sealed
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 5.30 Minute
- Backup/Run Time (Half Load)
- 15.30 Minute
- Typical Battery Recharge Time
- 4 Minute
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -20°C - 50°C
- Maximum Operating Elevation
- 1.50 km
- Maximum Storage Elevation
- 1.50 km
- Operating Humidity
- 20% - 90%
- Storage Relative Humidity
- 10% - 90%
- Sound Emission (A-Weighted)
- 45 dB(A)
- Thermal Dissipation
- 682 BTU/h
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 88 mm
- Width
- 438 mm
- Depth
- 430 mm
- Rack Height
- 2U
- Form Factor
- Tower/Rack Convertible
- Weight (Approximate)
- 13.80 kg
- Miscellaneous
- Package Contents
- Online S OLS1500ERT2UA 1500VA Tower/Rack Convertible UPS
- Rackmount Rail
- Rackmount Ears
- Screw Kit
- Power Cord
- USB Cable
- User's Manual
- Certifications & Standards
CE
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
