- General Information
- Manufacturer
- Datalogic S.p.A
- Manufacturer Website Address
- http://www.datalogic.com
- Brand Name
- Datalogic
- Product Line
- Touch
- Product Series
- TD1100
- Product Type
- Barcode Scanner

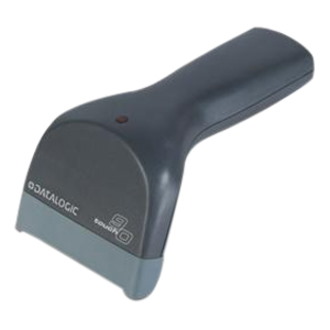

The Touch™ TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.
Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Connectivity Technology
- Cable
- Scanning Capability
- 1D
- Barcode Symbology Supported
1D / Linear Codes:
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
Stacked Codes:
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- Image Sensor Type
- Imager
- Linear
- Maximum Scan Resolution
- 0.10 mm
- Depth of Field
- 0" - 3.2"@7.5mil - Code 39
- 0" - 4.7"@10mil - Code 39
- 0" - 6"@13mil - EAN13
- Scan Pattern
- Omni-directional
- Interfaces/Ports
- Host Interface
- Serial
- Keyboard Wedge
- Physical Characteristics
- Form Factor
- Handheld
- Product Color
- Black
- Height
- 160 mm
- Width
- 58.4 mm
- Depth
- 83.8 mm
- Weight (Approximate)
- 130.4 g
- Miscellaneous
- Additional Information
USB Cable separate
- Environmentally Friendly
- Yes
- Environmental Certification
- China RoHS
- EU RoHS
