- General Information
- Manufacturer
- D-Link Systems, Inc
- Manufacturer Website Address
- http://www.dlink.co.uk
- Brand Name
- D-Link
- Product Series
- DGS-1520
- Product Type
- Ethernet Switch

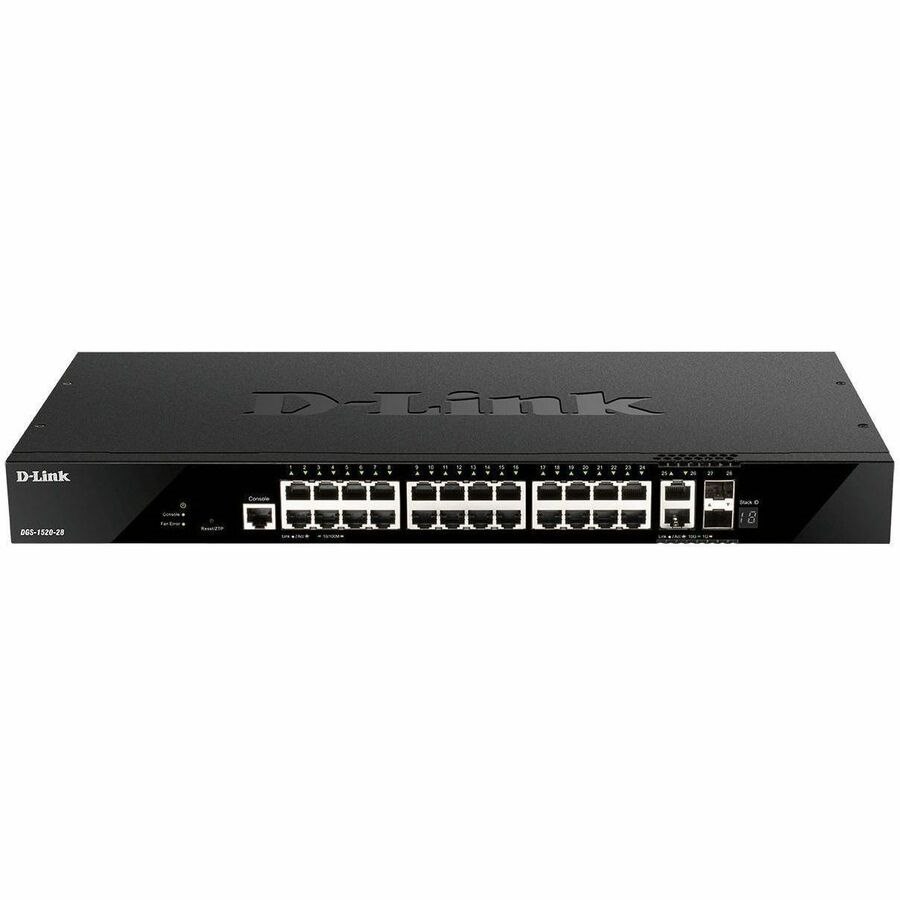

Next Generation Layer 3 Stackable Smart Managed Switch
A new generation of Layer 3 stackable Smart Managed switches to aggregate your Gigabit network with 10G ports for uplink or stacking
- Technical Information
- Features
- Zero-Touch Provisioning (ZTP)
- DHCP Snooping
- Energy Efficient
- DHCP Relay
- Remote Monitoring (RMON)
- High Availability Supported
- Yes
- Interfaces/Ports
- Total Number of Network Ports
- 26
- Uplink Port
- Yes
- Stack Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet RJ-45 Network Port
- 2 x 10 Gigabit Ethernet RJ-45 Network Port
- 2 x 10 Gigabit Ethernet SFP+ Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 10GBase-T
- 10GBase-X
- 100Base-FX
- 100Base-TX
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 2
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3ae
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.3bz
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.1AX
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1Q
- IEEE 802.1v
- IEEE 802.1p
- IEEE 802.1Qbb
- Management & Protocols
- Manageable
- Yes
- Switch Management Type
- Smart Managed
- Reliability
- MTBF
- 468252 Hour
- Power Description
- PoE (RJ-45) Port
- No
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- Power Supply
- AC
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 30.40 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 43.9 mm
- Width
- 207.5 mm
- Length
- 440.9 mm
- Weight (Approximate)
- 2.33 kg
- Miscellaneous
- Application/Usage
- Network
