- General Information
- Manufacturer
- Honeywell International, Inc
- Manufacturer Website Address
- http://www.honeywell.com/sites/uk/
- Brand Name
- Intermec
- Marketing Information

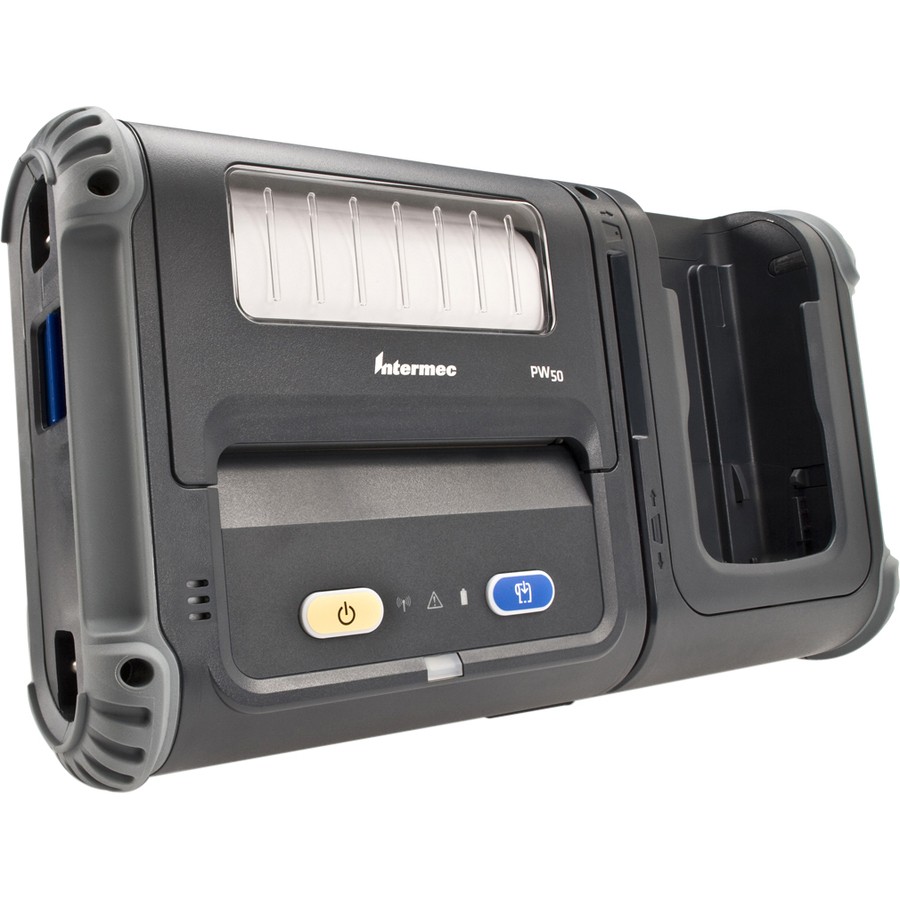

Designed for use with Intermec CN3, CN3e and CK61 mobile computers, the PW50 mobile workboard receipt printer provides a convenient, integrated solution for DSD and field service applications. Integrated DEX connector, optional readers, Bluetooth connectivity and fast print speed simplify transaction processing. Patented power management system maximizes battery life.
- Product Type
- Direct Thermal Printer
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Recommended Use
- Receipt Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 101.60 mm/s
- Maximum Print Resolution (dpi)
- 203
- Number of Columns
- 132
- Maximum Print Width
- 107.95 mm (4.25")
- Barcode Symbology Supported
- Codabar
- Code 39
- Code 128
- Code 128-A
- Code 128-B
- Code 128-C
- EAN-8
- EAN-13
- EAN-128 Subset C
- Interleaved 2 of 5
- UPC-A
- PDF-417
- Features
- Magnetic Stripe Reader
- Smart Card Reader
- Print Technology
- Direct Thermal
- Memory
- Standard Memory
- 16 MB
- Flash Memory
- 64 MB
- Interfaces/Ports
- Serial Port
- Yes
- Network & Communication
- Bluetooth
- Yes
- Media Types & Handling
- Media Type
- Direct Thermal Label
- Fanfold
- Receipt
- Media Thickness
- 111.8 µm
- Maximum Roll Diameter
- 67.31 mm
- Maximum Label Width
- 111.76 mm
- Maximum Label Length
- 609.60 mm
- Label Core Size
- 19.05 mm
- Fonts & Emulation
- Language Emulation
- ESC/P
- Power Description
- Input Voltage
- 14.8 V DC
- Battery Information
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Rechargeable
- Yes
- Physical Characteristics
- Form Factor
- Portable
- Height
- 177.8 mm
- Width
- 309.9 mm
- Depth
- 81.3 mm
- Miscellaneous
- Platform Supported
- PC
- Certifications & Standards
- North America UL and cUL Listed
- UL 60950-1
- Europe - GS Licensed
- EN 60950-1
- Mexico NYCE Certified
- NOM 19
- Other Countries IEC 60950-1
- EMC Approvals
- USA FCC Title 47
- Europe EMC Directive (EN55022 Class B + EN55024)
- CISPR22
- Unicode
