- General Information
- Manufacturer
- IC INTRACOM
- Manufacturer Website Address
- http://www.icintracom.com
- Brand Name
- Intellinet
- Marketing Information

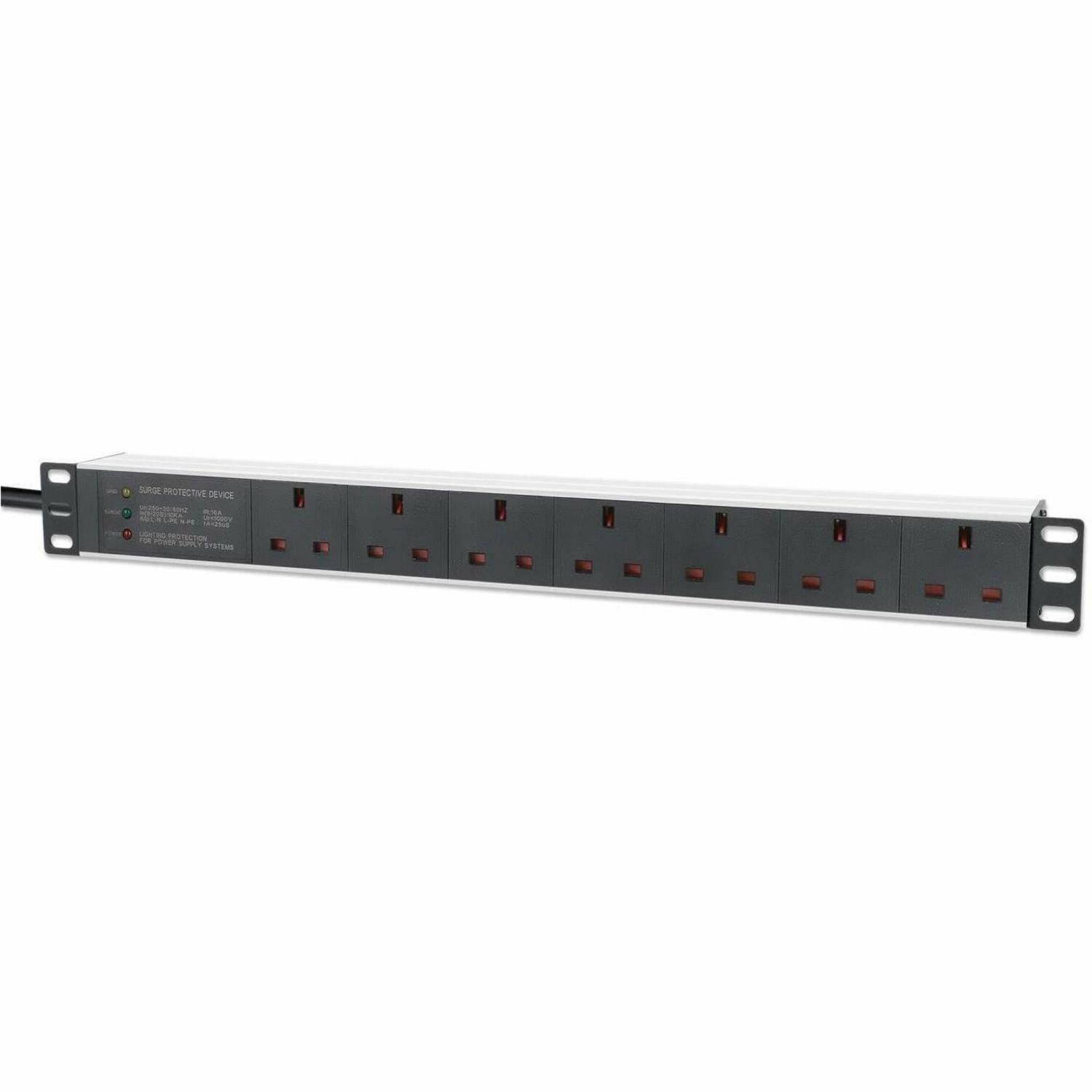

Rack mount 7-way UK 19 inch PDU surge protector power strip - power up to seven devices in your network
Plug your networking, telecom, surveillance, AV or other electronics into this 7-outlet 19" PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features seven British BS1363A outlets in a durable black aluminum housing. This PDU mounts in 1U of space in 19-inch racks. For greater safety, it features a surge suppression rating of 170 joules and a 6,000 A surge current.
- Product Type
- PDU
- Technical Information
- Receptacle Type
- BS 1363A
- Receptacle Detail
- 7 x BS 1363A
- Protection Type
- Surge Protection
- Load Capacity (Watt)
- 3.25 kW
- Power Description
- Input Voltage
- 230 V AC
- Input Voltage Range
- 220 V AC - 250 V AC
- Surge Energy Rating
- 170 J
- Input Frequency
- 60 Hz
- Physical Characteristics
- Product Material
- Aluminium
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Cord Length
- 3 m
- Height
- 45 mm
- Width
- 482.6 mm
- Length
- 62 mm
- Weight (Approximate)
- 955 g
- Miscellaneous
- Additional Information
- Maximum load current: 13.0 A
- 6,000 A surge current
- Cable type: H05VV-F 3G 1.5 mm²
- Certifications & Standards
- UKCA
- CE
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
