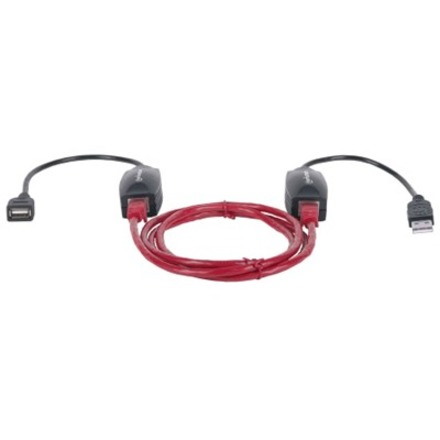

The MANHATTAN USB Line Extender is a convenient way to bridge the distance between a USB device and a PC host without signal loss. Consisting of a local and remote unit, using the UNIQUEUIC chipset with a Cat5e network cable (not included) to connect, process and repeat USB signals.The local and remote units can also be used separately to customize cables of any length up to 60 m (196 ft.).
- General Information
- Manufacturer
- Manhattan
- Manufacturer Website Address
- http://www.manhattan-products.com
- Brand Name
- Manhattan
- Product Type
- USB Extender
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Maximum Extended Range
- 60 m
- Maximum Data Transfer Rate
- 1.50 MB/s
- Physical Characteristics
- Product Color
- Black
- Height
- 30.5 mm
- Width
- 195.6 mm
- Depth
- 198.1 mm
- Miscellaneous
- Package Contents
- 179300 USB Line Extender
- Quick install / Reference Guide
- Additional Information
- Local unit : USB A-type male and RJ45 female
- Remote unit : USB A-type female and RJ45 female
- Throughput : 12 Mbps
- Maximum length : up to 60 m (196 ft.)
- Extends the distance of barcode scanners, printers, digital cameras, keyboard/mouse extensions and other USB devices from a USB-enabled computer
- Embedded transceivers enhance signal and prevent signal loss
- Bus powered requires no external power supply; Windows and Mac compatible
- Black Color
- Certifications & Standards
- CE
- Environmentally Friendly
- Yes
- Environmental Certification
- RoHS
