- General Information
- Manufacturer
- Microchip Technology Inc.
- Manufacturer Website Address
- http://www.microchip.com
- Brand Name
- Microchip
- Marketing Information

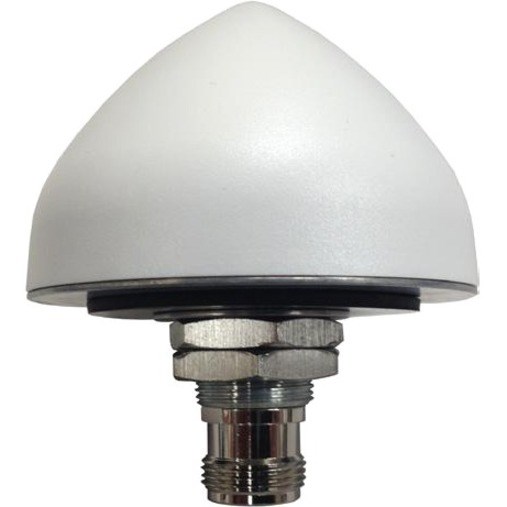

- The standard antenna used with the SyncServer S600/S650 and TimeProvider4100 is a high-gain (40 dB) GNSS antenna covering the GPS L1,Galileo E1, GLONASS L1, and SBAS (WAAS, EGNOS, QZSS and MSAS) frequency band (1575 MHz to 1606 MHz). The antenna has a three-stage low-noise amplifier, with a mid-section SAW with a tight pre-filter to protect against saturation by high- level sub-harmonics and L-Band signals, making it excellent for timing applications. An L-bracket for pole mounting and 3-foot BNC(m) to N(f) cable is also included.
- Product Type
- Antenna
- Technical Information
- Operating Frequency Range
- 1575 MHz to 1606 MHz
- Antenna Gain
- 40 dB
- Interfaces/Ports
- Connector Type
- BNC
- Physical Characteristics
- Product Color
- White
- Height
- 21 mm
- Diameter
- 66.5 mm
- Form Factor
- Pole
- Weight (Approximate)
- 150 g
- Miscellaneous
- Application/Usage
- GLONASS
- GPS
- Compatibility
Microsemi Products:
- SyncServer S600
- SyncServer S650
- TimeProvider 4100 Series
- Environmentally Friendly
- Yes
