- General Information
- Manufacturer
- Microchip Technology Inc.
- Manufacturer Website Address
- http://www.microchip.com
- Brand Name
- Microchip
- Product Type
- PoE Injector

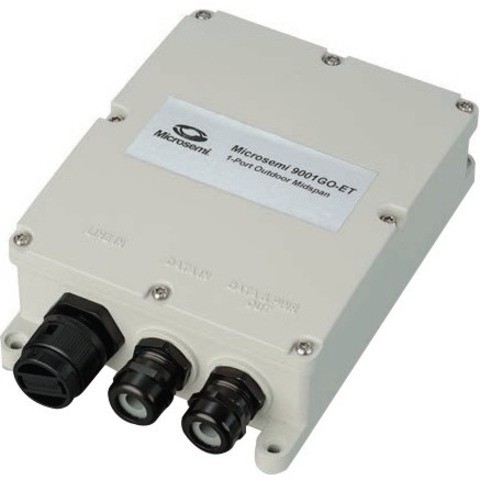

Microchip's PD-9001GO-ET Power over Ethernet (PoE) single-port midspan offers a cost-effective, IEEE 802.3atcompliant solution for outdoor installations, guaranteeing 30 W of power and ensuring safe and reliable operation of any standard PoE data terminal in outdoor environments. It allows wireless LAN access points, security network cameras, and other IP terminals to receive power and data over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9001GO-ET also offers surge protection for both the AC and the PoE ports, ensuring the indoor equipment is protected from outdoor surges.
- Technical Information
- Protection Type
- Surge Protection
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Output Voltage
- 54 V DC
- Maximum Input Current
- 1 A
- Minimum Frequency
- 50 Hz
- Maximum Frequency
- 60 Hz
- Maximum Output Power
- 30 W
- Interfaces/Ports
- Input Ports
- 1 x 10/100/1000Base-T
- Output Ports
- 1 x 10/100/1000Base-T
- Physical Characteristics
- Height
- 59.9 mm
- Width
- 169.9 mm
- Depth
- 140 mm
- Weight (Approximate)
- 1.40 kg
- Miscellaneous
- Compatibility
- Wireless LAN Access Points
- Security Network Cameras
- IP Terminals
- Certifications & Standards
- IEEE 802.3af
- IEEE 802.3at
- CE
- FCC Part 15
- Class B
- EN 55022 Class B (Emissions)
- EN 55024
- EN61000-4-5 Class 5
- (6 kV CM/DM)
- VCCI
- UL/IEC/EN 60950-1
- UL60950-22
- EN60529
- NEMA 250
- Level 4X ASTM B-117
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
