- General Information
- Manufacturer
- Newland
- Manufacturer Website Address
- http://www.newland-id.com
- Brand Name
- Newland
- Product Line
- FM430 Barracuda
- Product Type
- Barcode Scanner

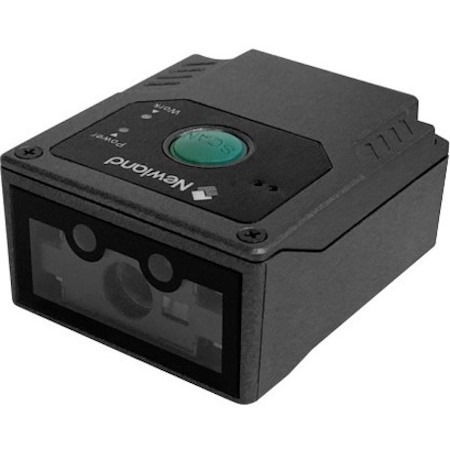

The new FM430 Barracuda is Newland's most aggressive and efficient fixed mount scanner to date, making it a strong all-round solution. It's equipped with a megapixel camera that scans virtually any 1D and 2D barcode with impressive speed and ease.
It allows it to pick up on barcodes quickly, making it easy to use, even for inexperienced users.
On top of that, the FM430 Barracuda's programming, IR sensor and light sensor help keep users moving, even in low light conditions. The combination of these features is what makes the device really knock the socks off similar scanners in the industry. It allows it to pick up on barcodes quickly, making it easy to use, even for inexperienced users.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Cable
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
- 1D:
- EAN-13
- EAN-8
- UPC-A
- UPC-E
- Code 128
- Code 39
- Codabar
- UCC/EAN 128
- RSS
- ITF
- ITF-14
- ITF6
- Standard 25
- Matrix 25
- COOP 25
- Industrial 25
- Plessey
- MSI Plessey
- Code 11
- Code93
- Code 49
- Code 16K
- PDF417
- QR Code
- Data Matrix
- AZTEC
- CSC
- Maxicode
- Micro QR
- Micro PDF417
- GM
- Code One
- Light Source
- LED
- Image Sensor Type
- CMOS
- Scan Mode
- Sense
- Depth of Field
- EAN 13 (13mil) 55-360mm
- Code 39 (5mil) 70-180mm
- PDF417 (6.67mil) 55-160mm
- Data Matrix (10mil) 50-170mm
- QR (15mil) 40-210mm
- Scanning Distance
- 360 mm
- Cable Type Included
- USB
- Field of View (Horizontal)
- 51°
- Field of View (Vertical)
- 32°
- Reading Angle (Skew)
- 55°
- Reading Angle (Pitch)
- 55°
- Reading Angle (Roll)
- 360°
- Drop Specification
1.5m Drop
- Minimum Print Contrast
- 25%
- Maximum Element Resolution (Code 39)
- 0.13 mm
- Maximum Element Resolution (DataMatrix)
- 0.25 mm
- Maximum Element Resolution (PDF417)
- 0.17 mm
- Image Sensor Resolution
- 1280 x 800
- Illumination Type
- LED
- Illumination Color
- White
- Processor & Chipset
- Processor Model
- X1500
- Processor Speed
- 1 GHz
- Network & Communication
- Infrared
- Yes
- Interfaces/Ports
- Host Interface
- Serial
- USB
- Power Description
- Input Current
- 322.70 mA
- Standby Current
- 83.30 mA
- Environmental Conditions
- Operating Temperature
- -20°C to 60°C
- Storage Temperature
- -40°C to 70°C
- Humidity (Non-condensing)
- 5% to 95%
- Physical Characteristics
- Form Factor
- Fixed Mount
- Height
- 24.3 mm
- Width
- 41.5 mm
- Depth
- 49.5 mm
- Weight (Approximate)
- 75 g
- Miscellaneous
- Package Contents
- FM430 Barracuda
- 2 meter USB extension cable
- Ingress Protection (IP) Rating
- IP54
- Application/Usage
- Industrial
- Transportation
- Hospitality
- Logistics
- Retail
- Outdoor
- Software Supported
EasySet Configuration Tool
- Environmentally Friendly
- Yes
