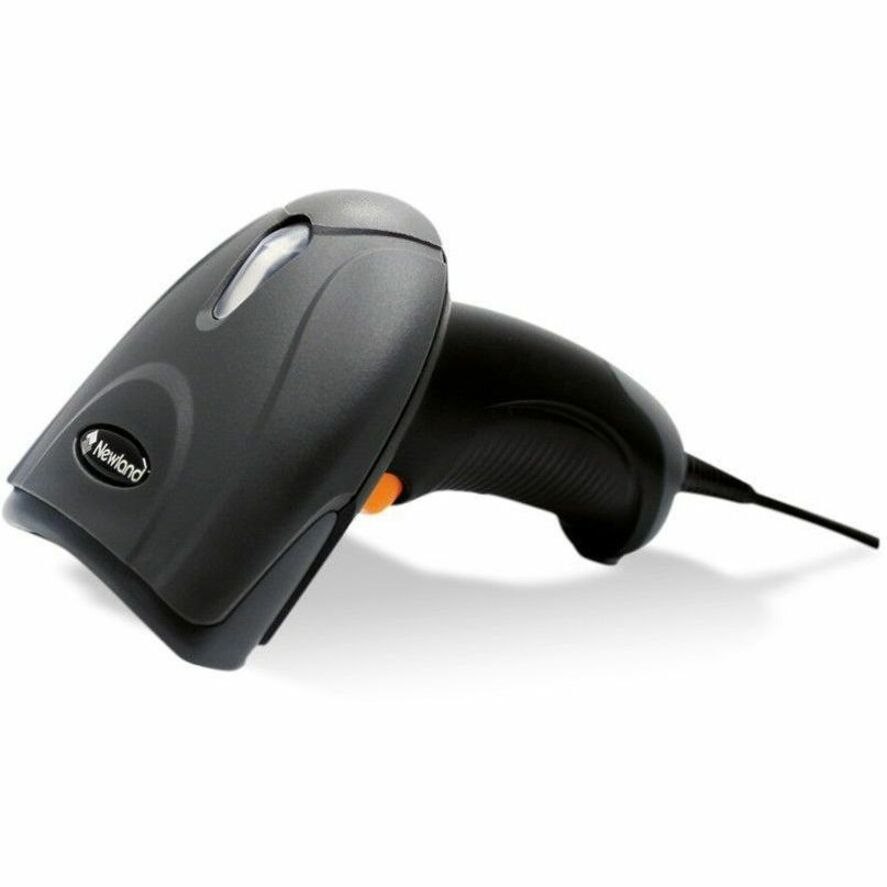

Newland HR10 Retail, Distribution, Sorting, Hospitality Handheld Barcode Scanner - Cable Connectivity

  • Part: 1611717
  • Model: NLS-HR1060-70F
£33.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Newland
    • Manufacturer Website Address
    • http://www.newland-id.com
    • Brand Name
    • Newland
    • Product Type
    • Barcode Scanner

Delivers outstanding value.

Designed as an entry-level 1D barcode scanner, the HR10 Sardina provides excellent value for everyday use. The device is easy and comfortable to use and can stand up to everyday drops and bumps, making it a reliable investment.

Reduces the need for training.

Intuitive to use, the HR10 Sardina requires little to no set up or training. From the moment the device is taken out of the box, employees can comfortably use the device all day due to its light design, speed and simplicity. It is equipped with a fast and accurate Newland 1D scanning engine. The result? Aggressive linear barcode reading that eliminates delays in scan-intensive applications.

Built for the task at hand.

From barcodes printed on paper to barcodes displayed on a smartphone screen, the HR10 Sardina scans virtually all linear barcodes with ease. Its ability to read barcodes from a distance improves worker comfort when scanning larger boxes or out-of-reach products in a cart.

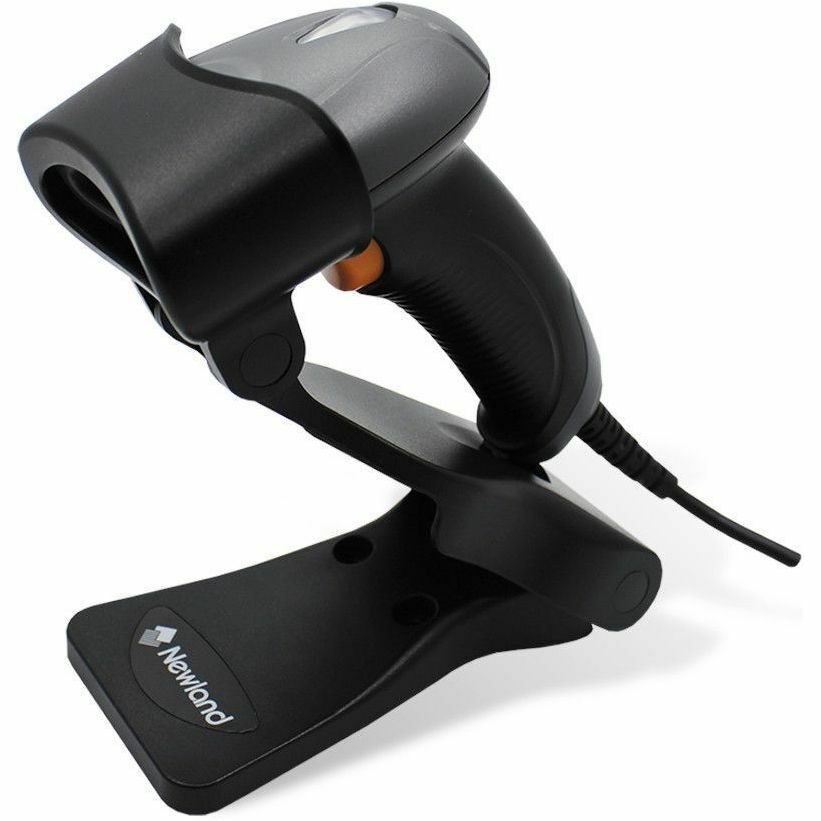

Foldable stand available.

A foldable stand is available either as an accessory or as a set that includes both the scanner and stand.

Application scenarios.

Retail chains, office automation, mail/parcel sorting, distribution.


  • Warranty
    • Limited Warranty
    • 5 Year

  • Technical Information
    • Connectivity Technology
    • Cable
    • Scanning Capability
    • 1D
    • Barcode Symbology Supported
    • 1D:

      • All major 1D symbologies
      • Including EAN-13
      • EAN-8
      • UPC-A
      • UPC-E
      • ISSN
      • ISBN
      • Codabar
      • Code 128
      • Code 93
      • ITF-6
      • ITF-14
      • Interleaved 2 of 5
      • Industrial 2 of 5
      • Standard 2 of 5
      • Matrix 2 of 5
      • GS1 Databar
      • Code 39
      • Code 11
      • MSI-Plessey
      • Plessey.
    • Image Sensor Type
    • Linear
    • CCD
    • Scan Rate
    • 300 scan/s
    • Scan Mode
    • Trigger/Sense
    • Field of View (Horizontal)
    • 38°
    • Reading Angle (Skew)
    • 60°
    • Reading Angle (Pitch)
    • 60°
    • Reading Angle (Roll)
    • 30°
    • Drop Specification
    • 1.2m

    • Minimum Print Contrast
    • 30%
    • Maximum Element Resolution (Code 39)
    • 0.13 mm
    • Illumination Type
    • LED
    • Illumination Color
    • Red
  • Interfaces/Ports
    • Host Interface
    • Serial
    • USB
  • Power Description
    • Power Supply Included
    • Yes
    • Input Current
    • 10 mA
    • Standby Current
    • 14 mA
  • Environmental Conditions
    • Operating Temperature
    • -20°C to 60°C
    • Storage Temperature
    • -40°C to 80°C
    • Humidity (Non-condensing)
    • 5% to 95%
  • Physical Characteristics
    • Form Factor
    • Handheld
    • Product Material
    • Acrylonitrile Butadiene Styrene (ABS)
    • Height
    • 145 mm
    • Width
    • 68 mm
    • Length
    • 101 mm
    • Weight (Approximate)
    • 190 g
  • Miscellaneous
    • Ingress Protection (IP) Rating
    • IP42
    • Application/Usage
    • Retail
    • Distribution
    • Sorting
    • Healthcare
    • Hospitality
