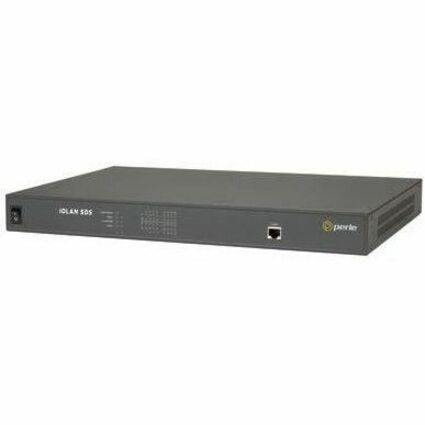

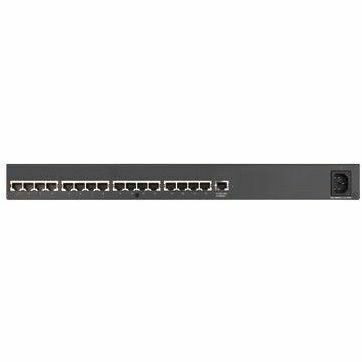

The IOLAN SDS Device Server (also used as a Terminal Server or Console Server) is the most advanced product for serial to Ethernet applications available. Delivering the highest performance in a 1U form factor, an IOLAN SDS offers robust security, flexibility and next generation IP (IPv6) technology, ideal for applications that require remote serial device communication, data capture or monitoring. Available in 8 and 16 port sizes, the IOLAN SDS series has the right fit for your serial application needs.
Features and Benefits - IOLAN SDS Serial Device Server
- TrueSerial® delivers the most authentic serial connections across Ethernet
- Universal, software selectable RS-232/422/485 (EIA-232/422/485) serial ports with RJ45 interface prevents mechanical tampering in the field
- 400Mhz, 750 MIPS, 32 bit processor* with integrated hardware encryption for the best performance on the market
- 1U rack form factor with flexible front, rear or DIN Rail mounting
- Indicators for network and serial interfaces for easy troubleshooting
- Plug & Play installation utility eliminates configuration hassles for all IOLAN's on your IP network
- Secure AES(256/192/128), 3DES, Blowfish, CAST128, ARCFOUR or ARCTWO data encryption across the LAN via SSH and SSL
- Advanced user authentication via RADIUS, TACACS+, LDAP, Kerberos, NIS and RSA prevent unauthorized access
- Advanced event management using Port buffering, Syslog, SNMP V3 and email event notification
- Advance management capabilities via a Windows Device Manager, HTTP, HTTPS/SSL/TLS, SSH and Telnet
- TruePort software provides true remote serial ports over an Ethernet LAN
- Share a serial port with multiple TCP or UDP servers
- ModBus Gateway
- Power over serial cable eliminates costs of a separate power installation
- Next Generation IP support (IPv6) for investment protection and network compatibility
- Routing protocols including PPP, SLIP/CSLIP, CIDR RIPV2, RIPV1
- 15 Kv ESD provides protection against electrostatic discharge and power surges
- Protective solid steel enclosure
- Java-free browser access to remote serial console ports via Telnet and SSH
- General Information
- Manufacturer
- Perle Systems, Inc
- Manufacturer Website Address
- http://www.perle.com
- Brand Name
- Perle
- Product Line
- IOLAN
- Product Series
- SDS
- Product Type
- Device Server
- Technical Information
- Device Type
- Console Server
- Connectivity Technology
- Wired
- Data Link Protocols
- HTTP
- IP Rating
- IP30
- Processor & Chipset
- Processor Manufacturer
- NXP
- Processor Speed
- 400 MHz
- Memory
- Standard Memory
- 64 MB
- Media & Performance
- Media Type Supported
- Twisted Pair
- Wireless Specifications
- Wireless LAN
- No
- ISM Band
- No
- UNII Band
- No
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Standard
- 10/100/1000Base-T
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Serial Port
- Yes
- Management Port
- Yes
- Total Number of Network Ports
- 1
- Number of Network (RJ-45) Ports
- 1
- Number of Serial Ports
- 16
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 55°C
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 VAC to 240 VAC
- Power Consumption
- 13 W
- Frequency
- 47 Hz
- 63 Hz
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- Rack-mountable
- DIN Rail Mountable
- Height
- 44.5 mm
- Width
- 434.3 mm
- Depth
- 263.7 mm
- Weight (Approximate)
- 3.10 kg
