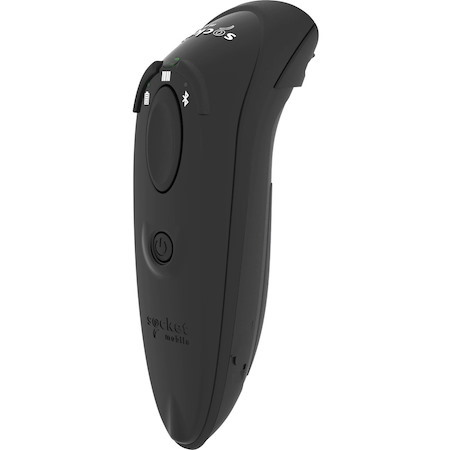

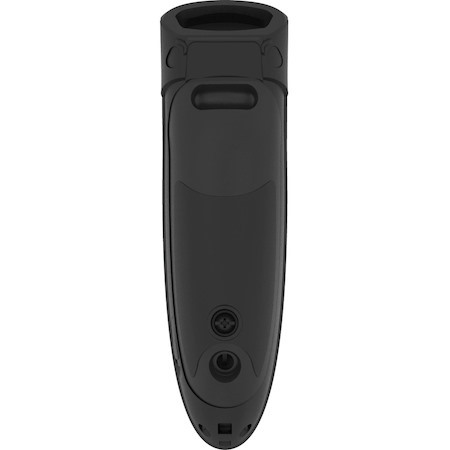

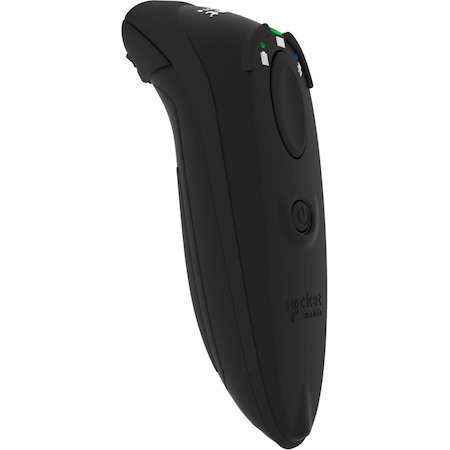

The D720 is a linear barcode & QR Code 1D/2D barcode scanner, able to read 1D and 2D barcodes on paper and screen. The D720 was built for mobility and durability. It is IP54 rated for dust and water, comes with a field-replaceable battery, and withstands multiple drops. Also great for warehousing and manufacturing applications due to the scanning versatility. It is lightweight, ergonomic designed and has a long-lasting battery. The scanner is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status. Perfect for inventory, order entry, field service, and other mobile business applications.
To enjoy optimal reliability and performance from the D720, it is recommended that users check with their app provider to ensure they have upgraded to the latest version of Capture SDK.
- General Information
- Manufacturer
- Socket Mobile, Inc
- Manufacturer Website Address
- http://www.socketmobile.com
- Brand Name
- Socket Mobile
- Product Line
- DuraScan
- Product Type
- Barcode Scanner
- Technical Information
- Connectivity Technology
- Wireless
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
- 1D:
- Codabar
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- Interleaved 2 of 5
- ISBT 128
- UPC A
- UPC E1
- Chinese 2 of 5
- Codabar
- Code 11
- Code 16KCode 39
- Code 93
- Code 128
- Discrete 2 of 5
- EAN-13
- EAN-8
- GS1 Databar
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI Plessey
- UPC A
- UPC E1
- Standard 2 of 5
- UK Plessey
- Data Matrix
- Micro QR Code
- PDF417
- QR Code
- Aztec
- Data Matrix
- Han Xin
- Micro PDF417
- Micro QR Code
- PDF417
- QR Code
- Image Sensor Type
- Linear
- Scan Pattern
- Omni-directional
- Scanning Distance
- 381 mm
- Cable Type Included
- USB

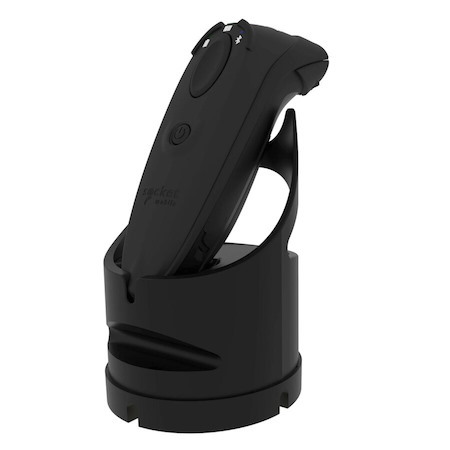

- Stand Included
- Yes
- Field of View (Horizontal)
- 45°
- Field of View (Vertical)
- 34°
- Maximum Ambient Light
- 100000 lux
- Drop Specification
- 6 drops to concrete - 1 on each side at 6.6 ft. (2 m)
- Minimum Print Contrast
- 25%
- Maximum Element Resolution (Code 39)
- 0.13 mm
- Maximum Element Resolution (DataMatrix)
- 0.25 mm
- Network & Communication
- Bluetooth
- Yes
- Battery Information
- Battery Included
- Yes
- Battery Weight
- 35 g
- Physical Characteristics
- Form Factor
- Handheld
- Rugged
- Yes
- Color Family
- Black
- Product Color
- Black
- Weight (Approximate)
- 107.7 g
- Miscellaneous
- Compatibility
- Apple - iPad , iPhone , iPod Touch
- Ingress Protection (IP) Rating
- IP54
- Application/Usage
- Warehouse
- Manufacturing
- Retail
- Transportation
- Healthcare
- Field Sales/Service
- Platform Supported
- Android
- PC
- Mac
- iOS
- Environmentally Friendly
- Yes
