- General Information
- Manufacturer
- Star Micronics, Inc
- Manufacturer Website Address
- http://www.starmicronics.com
- Brand Name
- Star Micronics
- Product Line

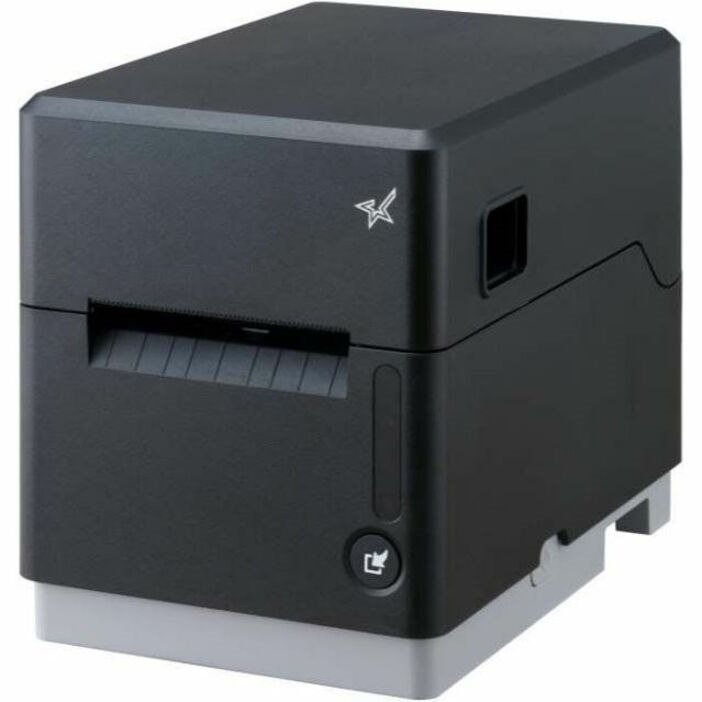

- mC-Label3
- Product Type
- Direct Thermal Printer
The mC-Label3 prints on a wide range of liner-free media including low adhesive "re-stick" labels as well as strong adhesive permanent and semi-permanent labels. Also designed for traditional liner pre-sized labels as well as continuous label rolls and receipt paper, the mC-Label can handle it all.
The mC-Label3 includes easy-to-use functions such as pre-stored labels activated by Star's one touch label function as well as free Star label design software ideal for any retail or restaurant application.
Save paper with liner-free media
Print high resolution text, barcodes and graphics on low, mid and high adhesive linerless media with no backing paper, reducing waste and hazards in restaurant and retail environments.
For traditional liner labels the mC-Label includes Gap and Black Mark sensors to ensure accurate positioning every time.
Adjustable label widths
The mC-Label3 prints on media from 25mm to 80mm wide, ideal for any label from food and beverage labels to jewellery to pharmacy.
The spindle-less drop-in roll holder and roll position sensors simplify label loading with label widths automatically reported to the host.
Ultra-connected
For PC, Network, Tablet and Cloud systems, the mC-Label3 is equipped with USB-C, 2 x USB-A and Ethernet LAN interface as standard with Bluetooth and WLAN options. The powerful 20W USB-C port can connect and charge Android and Windows mobile devices, transferring data and power for all-day-use.
SteadyLAN technology provides a stable wired LAN connection to mobile devices and Star's new TetherLAN technology allows a connected 4G or 5G device to share its network connection with the printer creating a Cloud connected printer anywhere. Cash drawers, buzzers and USB scanners can also be connected and controlled via the printer. (Android and Windows devices only)
One-Touch-Label
Star has designed in useful features for simple operation. Clear LEDs show printer and connectivity status and useful features enhance the user experience. Star's One-Touch-Label feature enables three static label designs to be stored within the printer.
Simply print the stored label by pressing the multi-funtion button on the front with no device connection needed. Star's Paper taken sensor queues labels, preventing multiple labels printing before the previous label is taken. This is ideal in a kitchen environment for order queueing.
Connect to the Cloud
d Star's CloudPRNT™ technology offers businesses a way of communicating directly to a receipt, ticket, label or online order printer allowing integration of online purchasing with physical stores or restaurants. Simply print food orders and labels directly from Cloud based platforms and web sites.
For customers who prefer a managed service, Star has introduced StarPrinter.online, a dedicated service for retailers and restaurant owners to manage their printer esta
- Technical Information
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 180 mm/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Width
- 80 mm (3.15")
- Application/Usage
- Pharmacy
- Retail
- Healthcare
- Features
- Compact
- Splash Proof
- Mobile Device Printing
- Yes
- Wireless Print Technology
- Star CloudPRNT
- Star Micronics WebPRNT
- Ingress Protection (IP) Rating
- IP22
- Print Head Life
- 100km
- Connectivity Technology
- Wired & Wireless
- Print Technology
- Direct Thermal
- Interfaces/Ports
- USB
- Yes
- USB Standard
- USB Type C
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Ethernet
- Bluetooth
- Yes
- Wireless LAN
- Yes
- Cutter
- Cutter
- Yes
- Cutting Method
- Automatic
- Cutter Type
- Guillotine
- Cut Type
- Full/Partial Cut
- Media Types & Handling
- Media Type
- Label
- Die-cut Label
- Linerless
- Continuous Label
- Receipt
- Media Sensor
- Gap Sensor
- Label Jam Sensor
- Label Taken Sensor
- Cover Open Sensor
- Paper End Sensor
- Black Mark Sensor
- Printhead Position Detection Sensor
- Maximum Roll Diameter
- 102 mm
- Maximum Label Width
- 79.50 mm
- Power Description
- Power Source
- AC
- Environmental Conditions
- Operating Temperature
- 5°C - 45°C
- Operating Relative Humidity
- 10% - 90%
- Storage Temperature
- 60°C
- Storage Relative Humidity
- 10% - 90%
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 169 mm
- Width
- 143 mm
- Depth
- 212 mm
- Weight (Approximate)
- 2 kg
- Miscellaneous
- Package Contents
- MCL32CI Direct Thermal Printer
- AC Adapter
- Power Cable
- USB Cable (C-C 1m & C-A 1.8m)
- LAN Cable (1m)
- Simple Setup Sheet
- Safety Guide
- Platform Supported
- PC
- Android
- iOS
