- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com/uk
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- SFP

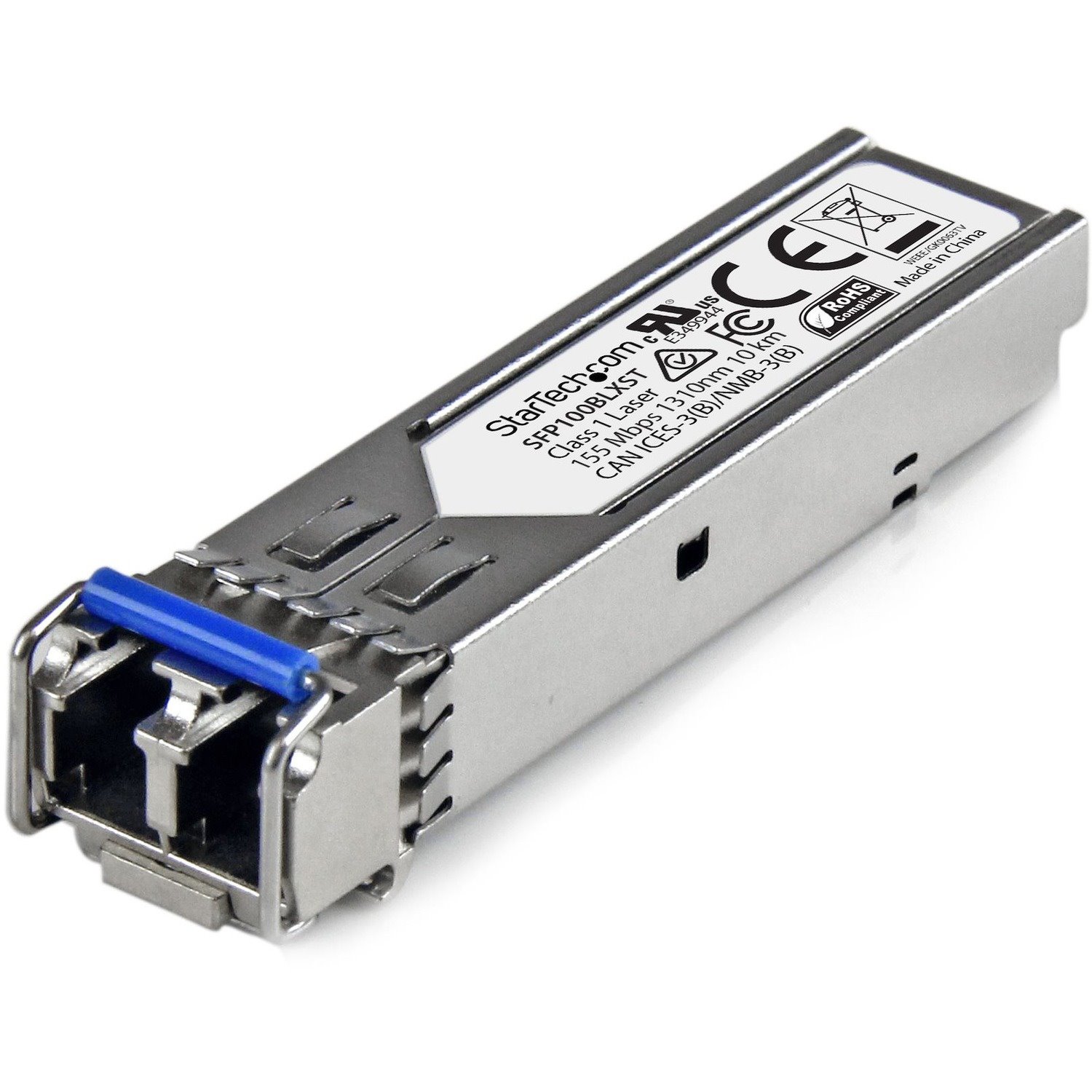

The SFP100BLXST is an MSA compliant fiber SFP transceiver that's designed, programmed and tested to work with 100BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.
Technical Specifications:- Wavelength: 1310nm
- Maximum Data Transfer Rate: 155 Mbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- Power Consumption: Less than 1 Watt
- DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
- Technical Information
- Application/Usage
- Optical Network
- Data Networking
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC Duplex 100Base-LX Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 100Base-LX
- Physical Characteristics
- Form Factor
- Hot-swappable
- Height
- 12.7 mm
- Width
- 15.2 mm
- Depth
- 58.4 mm
- Weight (Approximate)
- 31.2 g
- Miscellaneous
- Compatibility
- MSA Compliant
