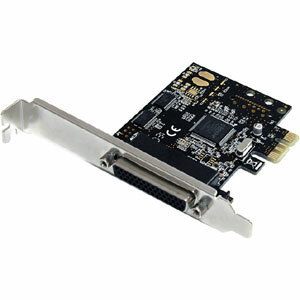

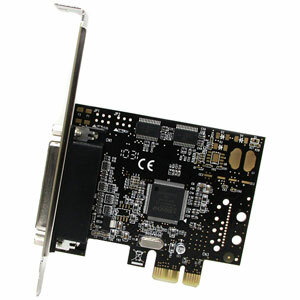

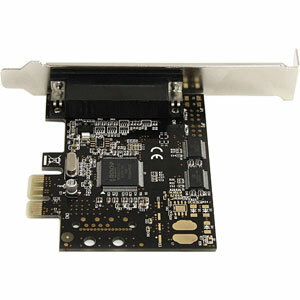

The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.

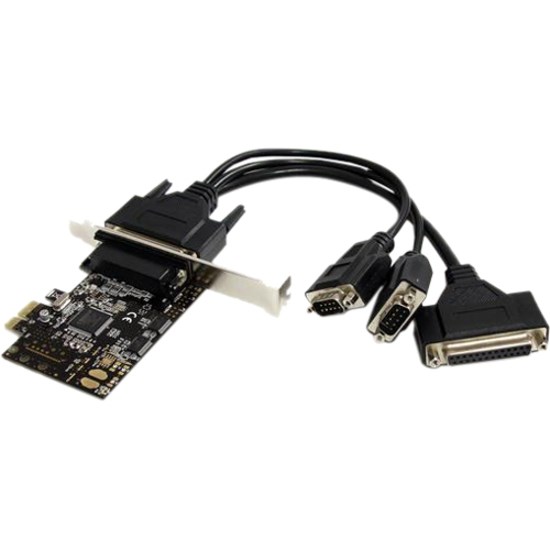

Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows® 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.
The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.
This product is a replacement for our PEX2S1P552B card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
More from the Manufacturer
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com/uk
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Serial/Parallel Combo Adapter
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Host Interface
- PCI Express x1
- Data Transfer Rate
- 250kB/s Serial Port
- 1.5MB/s Parallel Port
- UART Type
- 16C450
- 16C550
- Parallel Port Modes
- SPP
- EPP
- ECP
- Platform Supported
- PC
- Mac
- Interfaces/Ports
- Number of Parallel Ports (External)
- 1
- Number of Serial Ports (External)
- 2
- Physical Characteristics
- Form Factor
- Plug-in Card
- Card Height
- Low-profile
- Height
- 78.7 mm
- Width
- 22.9 mm
- Length
- 94 mm
- Weight (Approximate)
- 224 g
- Miscellaneous
- Package Contents
- 2S1P PCI Express Serial Parallel Combo Card
- 1 x DB9 Breakout Cable
- 1 x Full Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
- Environmentally Friendly
- Yes
- TAA Compliant
- Yes
