- General Information
- Manufacturer
- Veracity USA, Inc
- Manufacturer Website Address
- http://www.veracityusa.com
- Brand Name
- Veracity
- Product Type
- PoE Injector

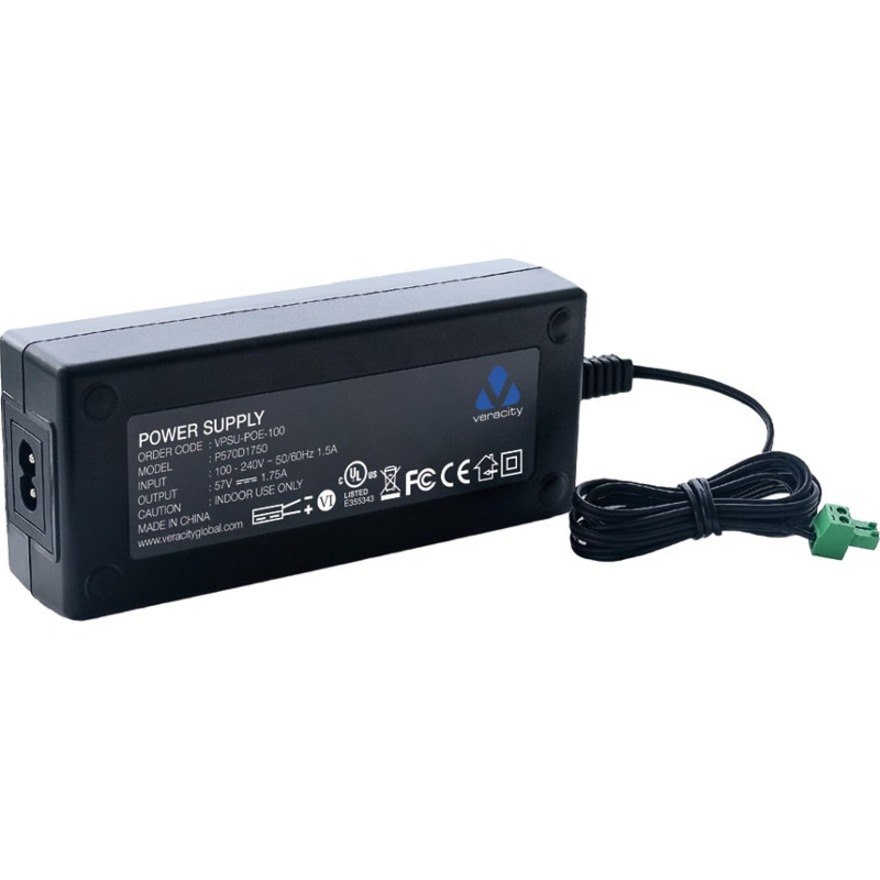

100W POE Power supply for a new generation of high power POE device
This 100W PSU is designed to power Veracity's HIGHWIRE, LONGSPAN and CAMSWITCH IP transmission products which in turn deliver POE to IP cameras and other POE devices
- 100W PSU designed for POE applications
- 57V DC, 1.75A output
- Wide voltage range input
- Short circuit protection
- Overcurrent and overvoltage protection
- Auto-reset on all fault conditions
- Compact and fanless for high reliability
- Wide operating temperature range
- Technical Information
- Protection Type
- Short Circuit
- Over Current
- Over Voltage
- Fuse
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Output Voltage
- 57 V DC
- Maximum Input Current
- 1.50 A
- Maximum Output Current
- 1.75 A
- Maximum Output Power
- 100 W
- Interfaces/Ports
- Input Ports
- 1 x Ethernet
- Output Ports
- 1 x PoE
- Physical Characteristics
- Height
- 35.5 mm
- Width
- 65 mm
- Length
- 150 mm
- Weight (Approximate)
- 300 g
- Miscellaneous
- Package Contents
- 100W P0E Power Supply
- UK Power Cable
- Compatibility
- Veracity Products:
- VHW-HWPS-B4 HIGHWIRE Base 4
- VHW-HWPS-B8 HIGHWIRE Base 8
- VLS-1P-BC HIGHWIRE Longstar Base
- VLS-1P-B LONGSPAN Base (Multiple units)
- VLS-LS-B8 LONGSPAN Base 8
- VLS-LSM-B LONGSPAN Max Base
- VLS-LSM-C LONGSPAN Max Camera
- VLS-LSM-C4 LONGSPAN Max Camera Quad
- VCS-CS-4P1 CAMSWITCH 4 Plus
- PSU-TRAY-ASSY 1U PSU Tray
- Environmentally Friendly
- Yes
- Country of Origin
- China
