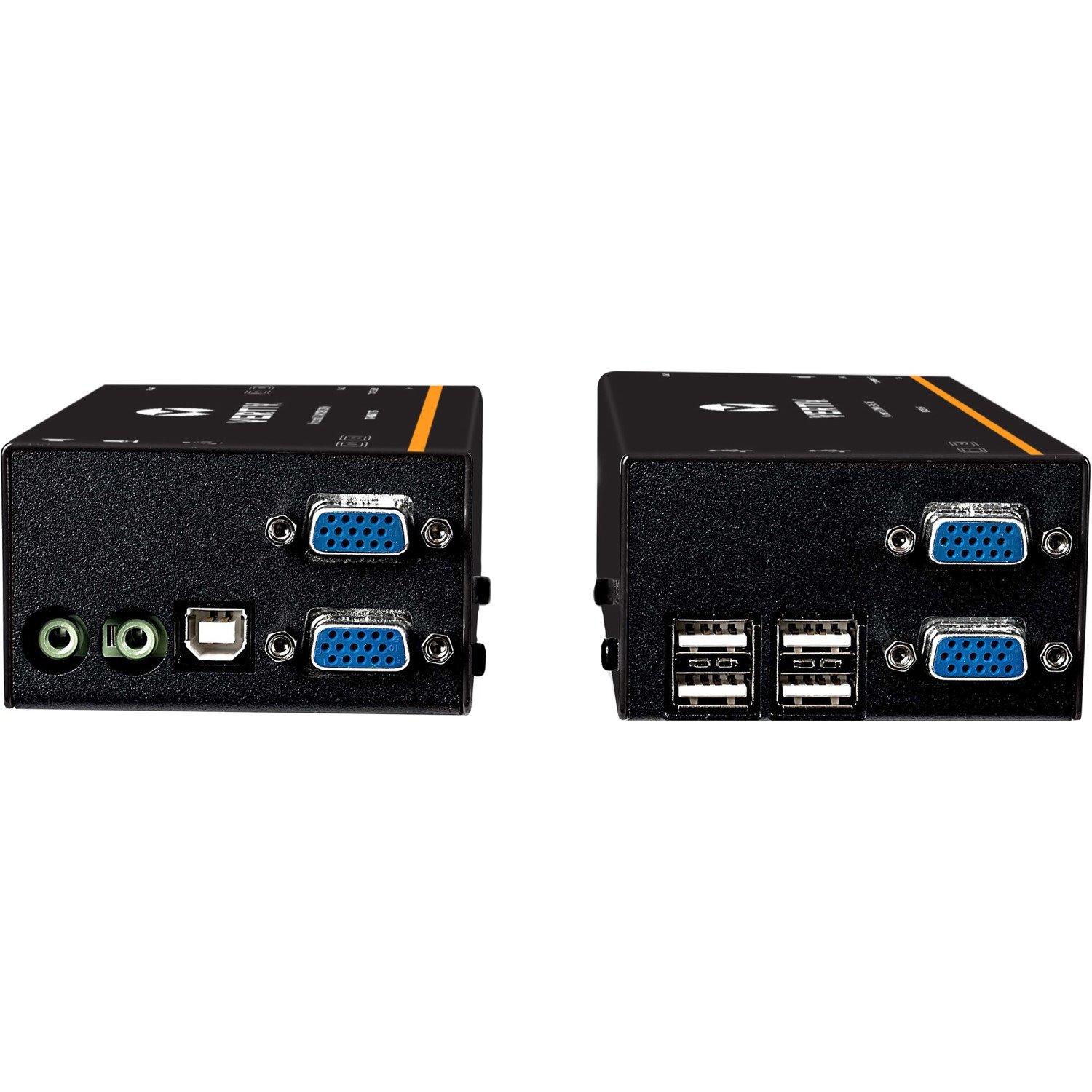

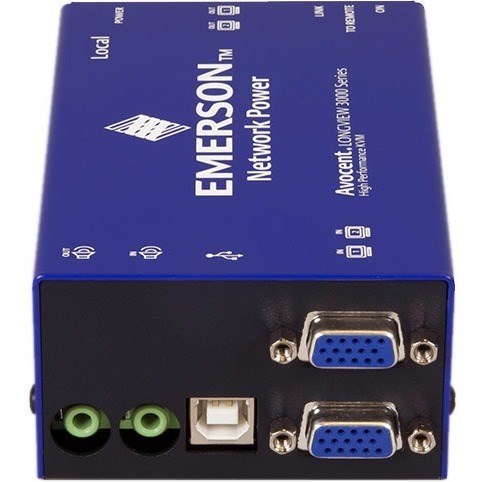

Avocent LV 3020P KVM Extender\nAvocent LongView extension solutions enable you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications.\nThe LV3000 next generation USB, video and audio extenders delivers sharp, bright and high resolution video images and high quality audio for single and multi screen desktops at distances up to 300 m (1000 ft) over a single or multiple CATx cables. The LV3000 series has been designed to provide industry-leading video clarity, compatibility and high rack densities.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertivco.com
- Brand Name
- AVOCENT
- Product Line
- LongView
- Product Series
- 3000
- Product Type
- KVM Console/Extender
- Technical Information
- Connectivity Technology
- Wired
- Number of Computers Supported
- 1
- Number of Remote Users Supported
- 1
- Maximum Operating Distance
- 300 m
- Video
- Graphic Mode
- WUXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- VGA
- Yes
- Number of VGA Ports
- 3
- Number of Network (RJ-45) Ports
- 2
- Number of USB Ports
- 5
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Physical Characteristics
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Transmitter Height
- 26 mm
- Transmitter Width
- 162 mm
- Transmitter Depth
- 75 mm
- Receiver Height
- 26 mm
- Receiver Width
- 122 mm
- Receiver Depth
- 75 mm
- Transmitter Weight (Approximate)
- 430 g
- Receiver Weight (Approximate)
- 350 g
- Miscellaneous
- Platform Supported
- PC
