- General Information
- Manufacturer
- ViewSonic Corporation
- Manufacturer Website Address
- http://www.viewsoniceurope.com/uk/
- Brand Name
- ViewSonic
- Product Line
- Luminous Superior
- Product Type
- DLP Projector
Product Description

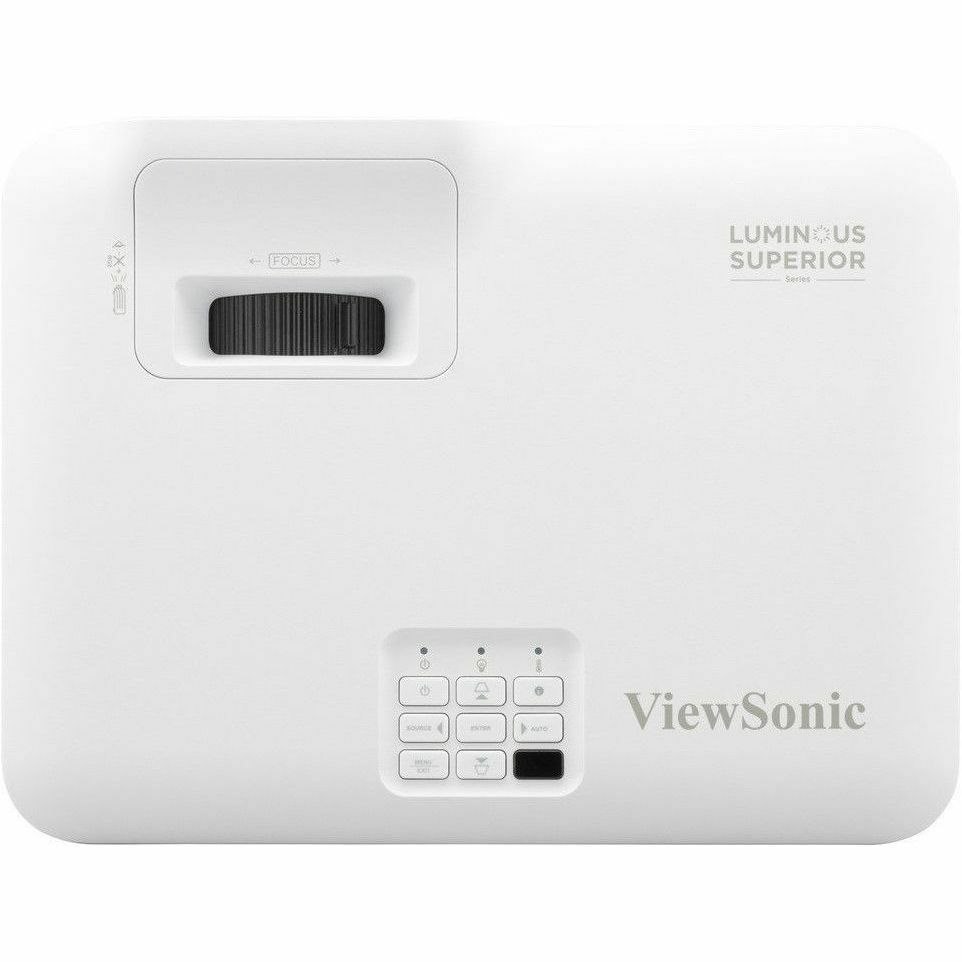

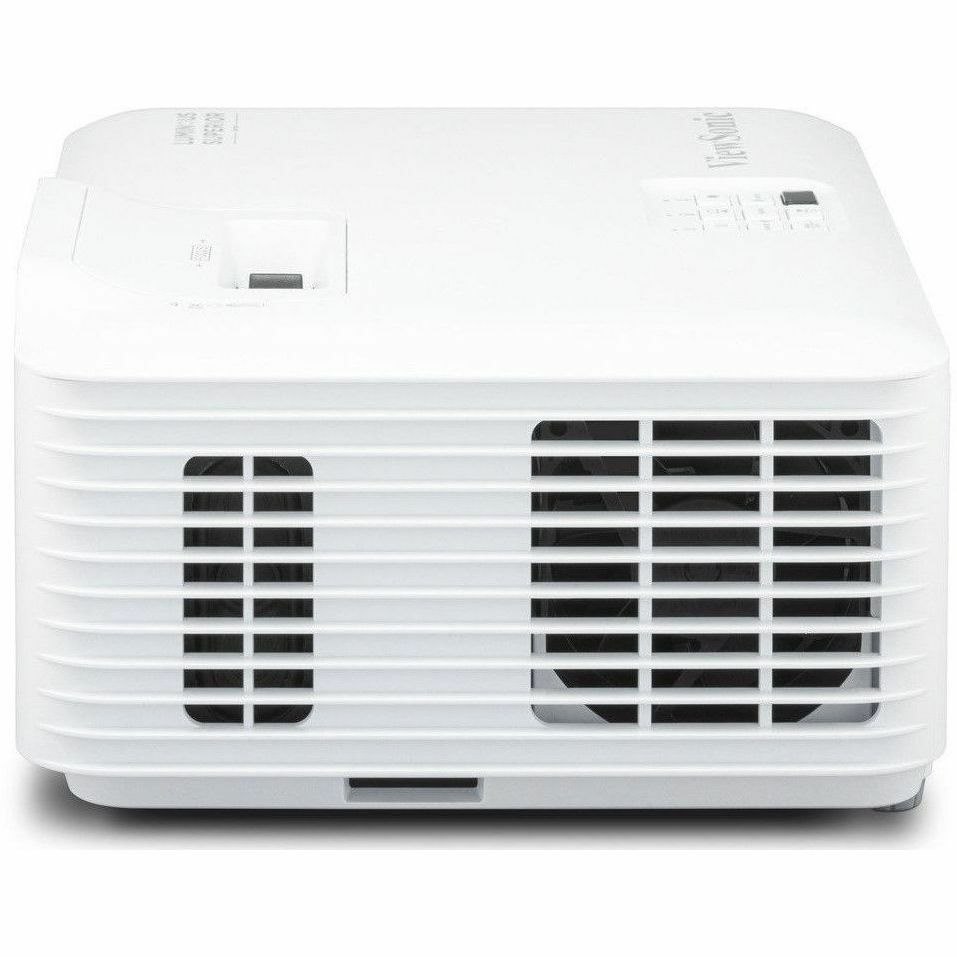

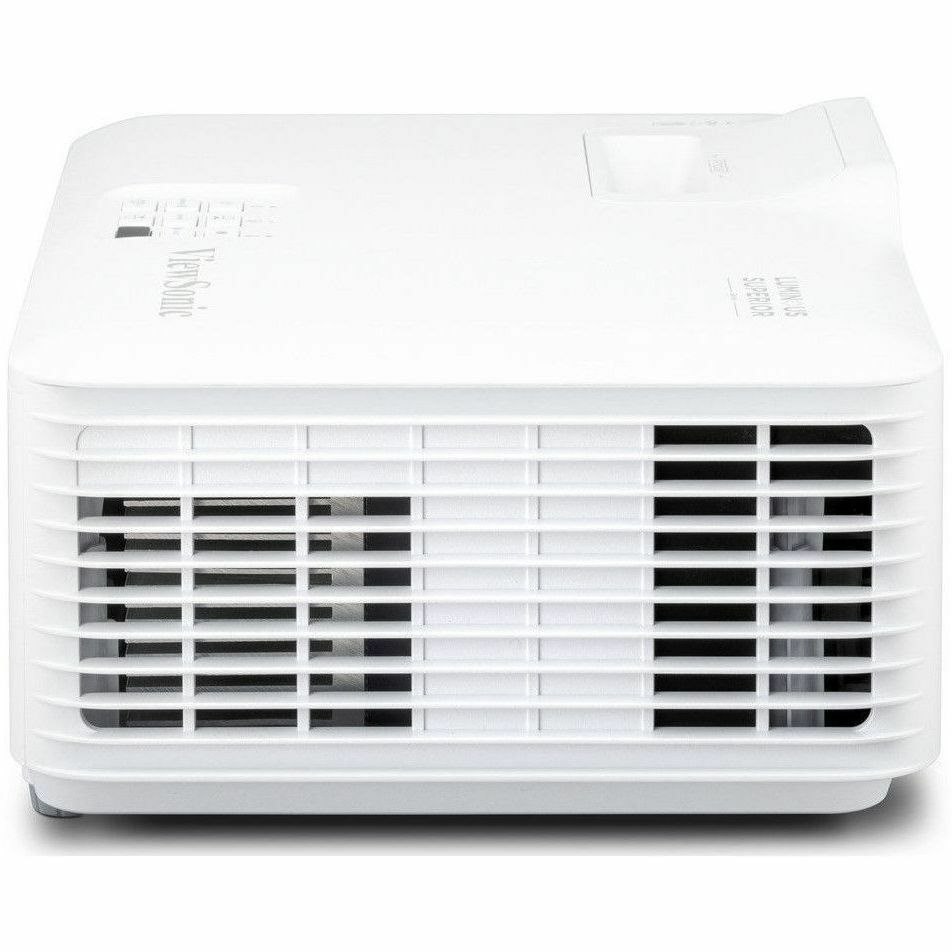

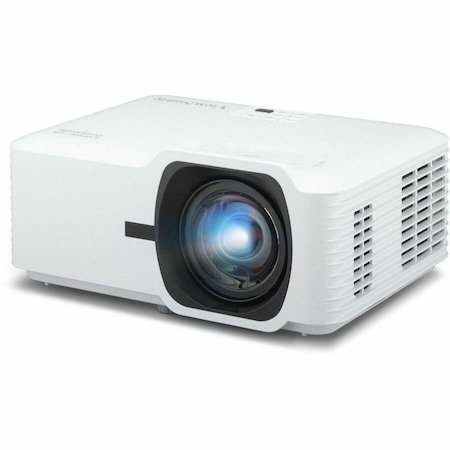

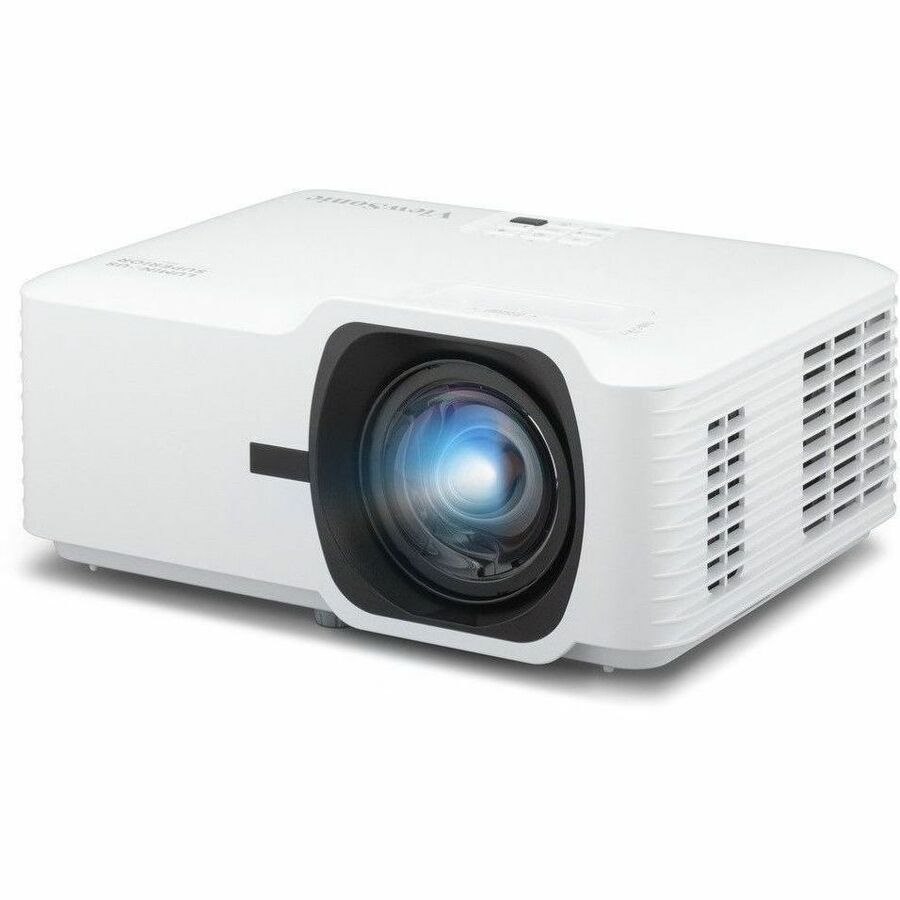

The LSD400HD-ST is part of ViewSonic's Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. Powered by 3rd-generation laser phosphor technology, it provides 4,000 ANSI Lumens of brightness and an impressive lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-eciency by reducing up to 49% power consumption than competing lamp projectors. With a 0.5 short throw, it delivers a 100" image from just 1.1 meters, ideal for immersive visuals in space-constrained environments. Delivering ultra-large projections up to 300" in sharp 1080p Full HD resolution, this projector leverages high native contrast from a 0.65" DMD chip with DLP technology. Equipped with H/V keystone & 4 corner correction, and 360° projection, the LSD400HD-ST supports exible installation options, making it an excellent choice for golf simulation setups, exhibitions, and retail applications.
- Technical Information
- Projection Method
- Front
- Ceiling
- Display & Graphics
- Native Resolution
- 1920 x 1080
- Graphic Mode
- Full HD
- Projection Lens
- Throw Type
- Short Throw
- Maximum Focal Length
- 7.51 mm
- Minimum Diagonal Image Size
- 1016 mm
- Maximum Diagonal Image Size
- 7.62 m (300")
- Minimum Projection Distance
- 440 mm
- Maximum Projection Distance
- 3.29 m
- Lamp
- Number of Lamps
- 1
- Lamp Type
- Laser/Phosphor
- Normal Mode Lamp Life
- 20000 Hour
- Economy Mode Lamp Life
- 30000 Hour
- Image
- Standard Mode Brightness
- 4800 lm
- Colour Supported
- 1.07 Billion Colors
- Throw Ratio
- 0.5
- Contrast Ratio
- 3,000,000:1
- Video
- Video Signal Standard
- HDTV
- Output Scan Format
- 2160p
- Audio
- Speaker Included
- Yes

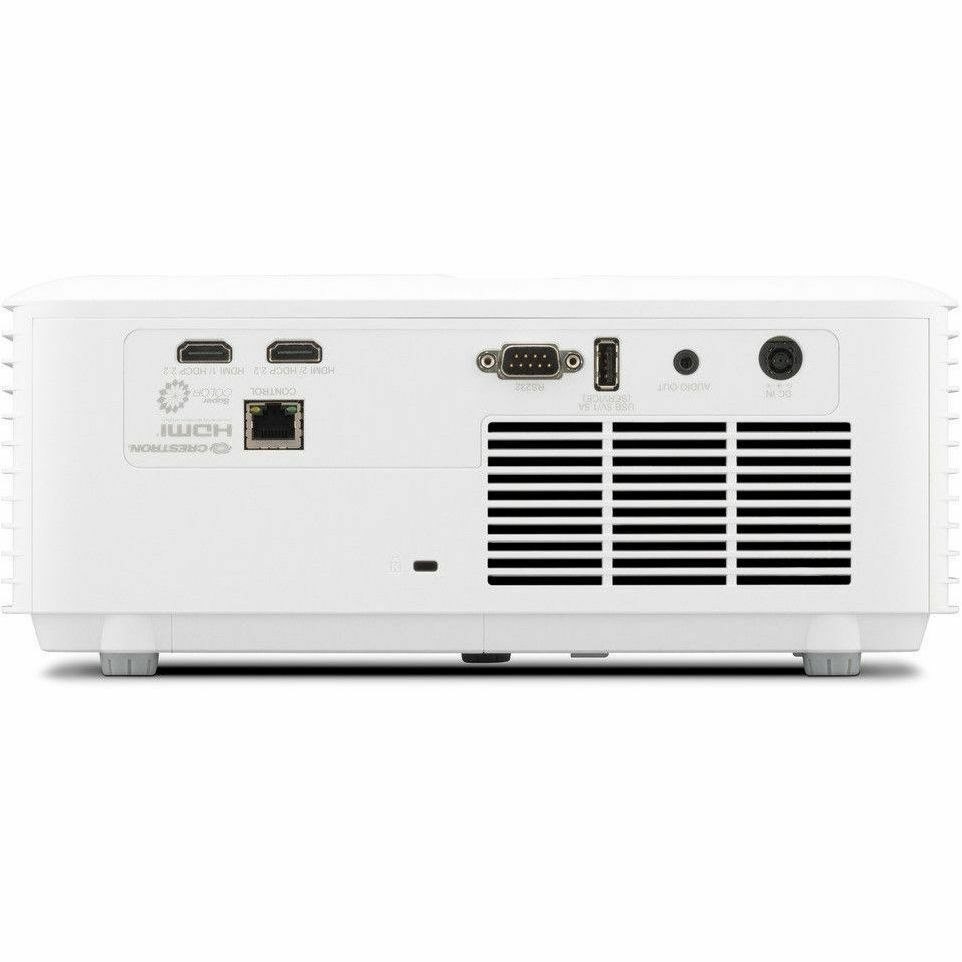

- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- Network (RJ-45)
- Yes
- Power Description
- Operating Power Consumption
- 143 W
- Physical Characteristics
- Form Factor
- Wall Mountable
- Ceiling Mountable
- Height
- 129 mm
- Width
- 286 mm
- Depth
- 216 mm
- Weight (Approximate)
- 3.10 kg
- Miscellaneous
- Application/Usage
- Commercial
- Education
- Sports
- Simulator
- Large Venue
- Retail
- Exhibition
- Package Contents
- Luminous Superior LSD400HD-ST DLP Projector
- 1 x Power Cord
- 1 x Remote Control
- Warranty Card (CN Only)
- QSG
- Lens Cover
