- General Information
- Manufacturer
- Zebra Technologies Corporation
- Manufacturer Website Address
- http://www.zebra.com/gb/en
- Brand Name
- Zebra
- Product Line
- Symbol
- Product Type
- Barcode Scanner Kit
This bi-directional LS1203 hand-held scanner handles all 1D bar codes and is ideal for small retailers. It delivers the functionality, features and reliability needed to improve operational efficiencies from the checkout line to the storeroom. It minimises manual key input - ensuring accuracy in all customer transactions - and it automates paper-based inventory processes. The device easily integrates multiple interfaces to help ensure connectivity to a host and PC system.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Cable
- Scanning Capability
- 1D
- Barcode Symbology Supported
- UPC/EAN
- UPC/EAN With Supplementals
- UCC/EAN 128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar
- Interleaved 2 Of 5
- Discrete 2 Of 5
- Code 93
- MSI
- Code 11
- IATA
- GS1 DataBar (Formerly RSS) Variants
- Chinese 2 of 5
- Light Source
- Laser
- Scan Rate
- 100 scan/s
- Maximum Scan Resolution
- 0.13 mm
- Depth of Field
- 0.25" - 5"@5mil - Code 39
- 0" - 7.75"@7.5mil - Code 39
- 0" - 8.5"@10mil - Code 39
- 0" - 8.5"@13mil - 100% UPC
- 0" - 10.25"@26mil - 200% UPC
- Scan Pattern
- Bi-directional
- Scanner Range
- Extended Range
- Scanning Distance
- 203 mm
- Cable Type Included
- USB
- Stand Included
- Yes
- Reading Angle (Skew)
- 60°
- Reading Angle (Pitch)
- 65°
- Reading Angle (Roll)
- 30°
- Maximum Ambient Light
- 86111 lux
- Drop Specification
- Withstands multiple 5 ft./1.524m drops to concrete
- Minimum Print Contrast
- 30%
- Minimum Element Resolution (Code 39)
- 0.13 mm
- Maximum Element Resolution (Code 39)
- 0.66 mm
- Interfaces/Ports
- Host Interface
- USB
- Power Description
- Input Voltage
- 5 V DC
- Power Source
- DC
- Physical Characteristics
- Form Factor
- Handheld
- Color Family
- Black
- Product Color
- Twilight Black
- Height
- 61 mm
- Width
- 61 mm
- Length
- 180.3 mm
- Weight (Approximate)
- 121.9 g
- Miscellaneous
- Package Contents

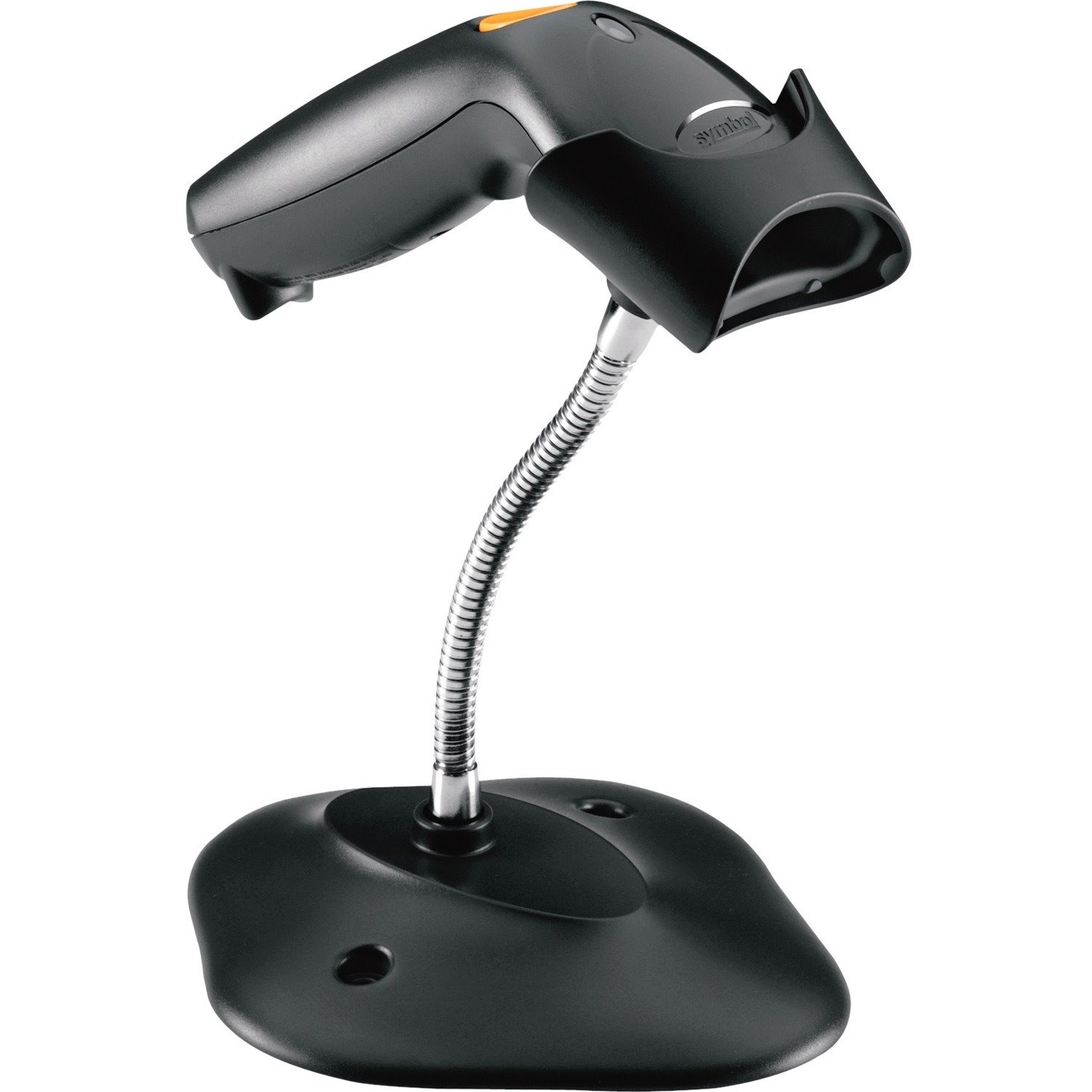

- Symbol LS1203 General Purpose Handheld Barcode Scanner
- USB Cable
- Stand
- Ingress Protection (IP) Rating
- IP41
- Application/Usage
- Retail
- Industrial
- Platform Supported
- PC
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
