- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- IDS-3117E
- Packaged Quantity
- 1

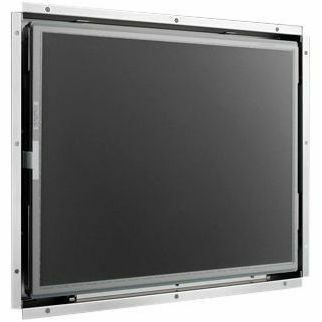

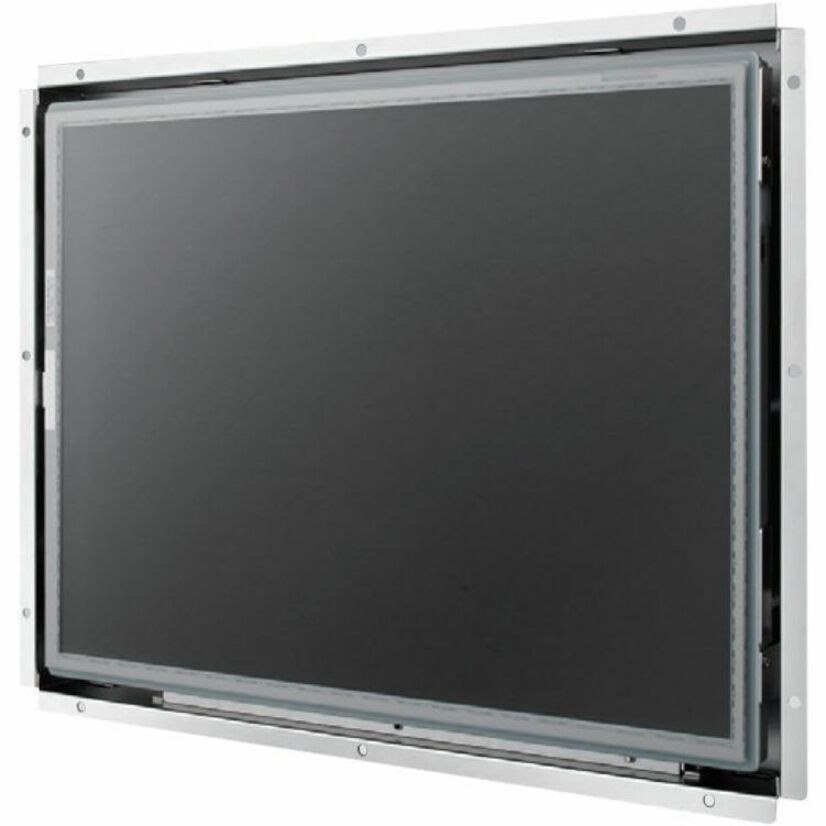

- Product Type
- Open-frame LED Touchscreen Monitor
- Technical Information
- Screen Size Class
- 17"
- Viewable Screen Size
- 43.2 cm (17")
- Screen Mode
- SXGA
- Response Time
- 5 ms
- Horizontal Viewing Angle
- 170°
- Vertical Viewing Angle
- 160°
- Mount Type
- Bracket-mountable
- Rear Mount
- Backlight Technology
- LED
- Features
- On-screen Display (OSD)
- Ultra Slim
- Video
- Maximum Resolution
- 1280 x 1024
- Colour Supported
- 16.2 Million Colours
- Native Contrast Ratio
- 1,000:1
- Brightness
- 250 cd/m²
- Touchscreen Information
- Touchscreen Type
- 5-wire Resistive

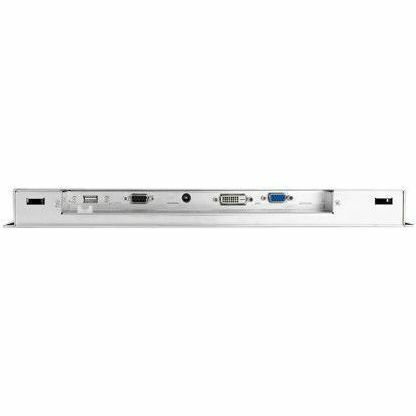

- Interfaces/Ports
- USB
- Yes
- VGA
- Yes
- Number of USB Ports
- 1
- Number of VGA Ports
- 1
- Environmental Conditions
- Operating Temperature Range
- 0°C to 45°C
- Operating Humidity Range
- 10% to 90% (Non-condensing)
- Physical Characteristics

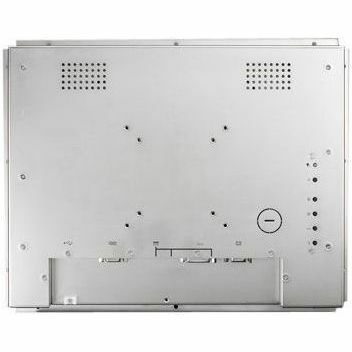

- VESA Mount Compatible
- Yes
- Height
- 344.7 mm
- Width
- 400 mm
- Depth
- 33.4 mm
- Weight (Approximate)
- 4.10 kg
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
