- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- IDS-3117R
- Packaged Quantity
- 1
- Product Type
- Open-frame LED Touchscreen Monitor

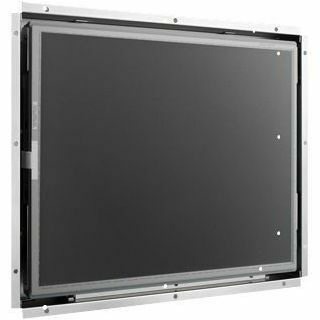

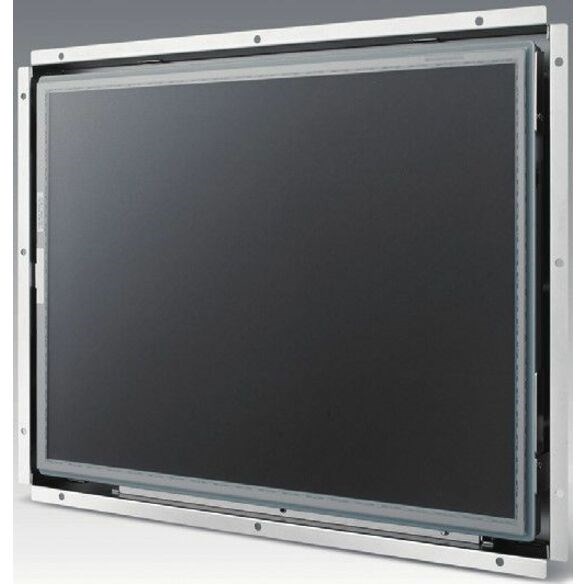

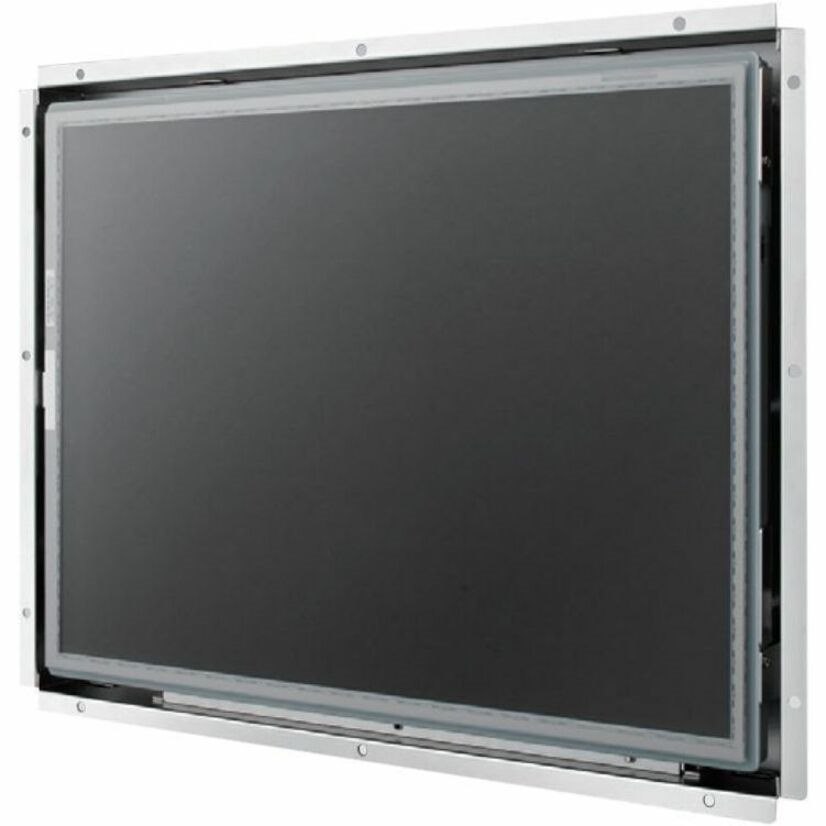

The Advantech IDS-3117 Open Frame Monitor Series offer ultra slim design supporting a 17" 1280 x 1024 pixels TFT LCD screen, with -20 ~ +60° C wide operating temperature, and optional resistive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
- Technical Information
- Screen Size Class
- 17"
- Viewable Screen Size
- 43.2 cm (17")
- Screen Mode
- SXGA
- Panel Technology
- Thin Film Transistor (TFT)
- Response Time
- 30 ms
- Horizontal Viewing Angle
- 170°
- Vertical Viewing Angle
- 160°
- Mount Type
- Rear Mount
- Backlight Technology
- LED
- Features
- On-screen Display (OSD)
- Ultra Slim
- Glass Hardness
- 3H
- Video
- Maximum Resolution
- 1280 x 1024
- Colour Supported
- 16.7 Million Colours
- Native Contrast Ratio
- 800:1
- Brightness
- 350 cd/m²
- Touchscreen Information
- Touchscreen Type
- 5-wire Resistive

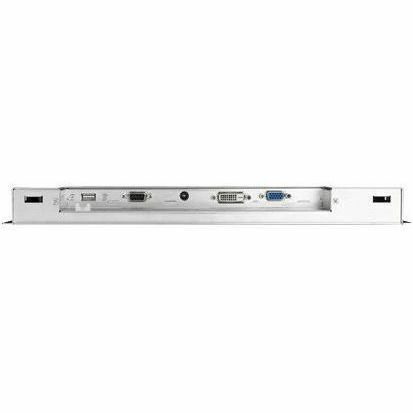

- Interfaces/Ports
- DVI
- Yes
- USB
- Yes
- VGA
- Yes
- Number of USB Ports
- 1
- Number of DVI Ports
- 1
- Number of VGA Ports
- 1
- Environmental Conditions
- Operating Temperature Range
- -20°C to 60°C
- Operating Humidity Range
- 10% to 90% (Non-condensing)
- Physical Characteristics

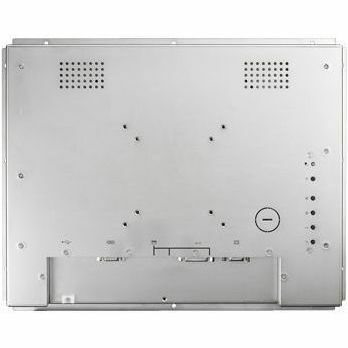

- VESA Mount Compatible
- Yes
- Height
- 344.7 mm
- Width
- 400 mm
- Depth
- 36.3 mm
- Weight (Approximate)
- 4.05 kg
- Miscellaneous
- Package Contents
- IDS-3117 17" 1280 x 1024, VGA/DVI interface, Ultra Slim Touch Open Frame Monitor
- 1 x M Cable USB-A(M)/USB-A(M) 180CM
- 1 x VGA cable 15P(M) 1.8 meter
- 8 x Clamper
- 8 x Screw of clamper M4_25L
- 1 x Cable clamp
- 1 x Screw of cable clamp
- 1 x Cable tie
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
