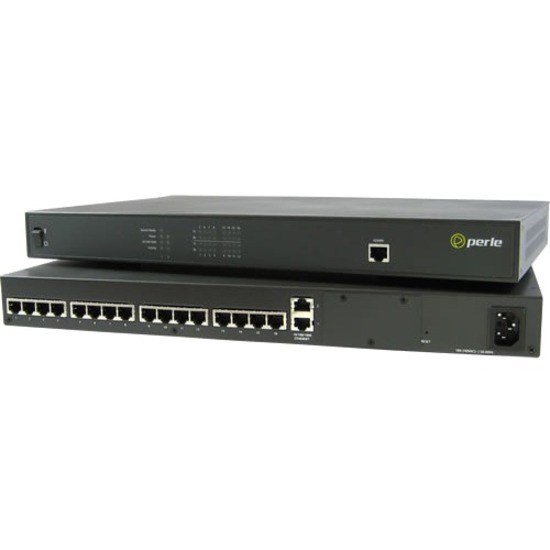

The IOLAN SDSC Terminal Server (also used as a Device Server or Console Server) is the most advanced product for serial to Ethernet applications.
Delivering the highest performance in a 1U form factor, an IOLAN SDSC offers robust security, reliability flexibility and next generation IP (IPv6) technology. It is ideal for applications that require remote serial device communication, data capture or device monitoring. With 8, 16 or 32 RJ45 ports, the IOLAN SDSC has the right fit for your serial to Ethernet application. The built-in dual Ethernet and Redundant Path Technology on the IOLAN SDSC provides dependable serial port access, making it the most reliable solution for connecting remote RS232, RS422 or RS485 equipment to Ethernet... all at the best price performance.
Ideal For
- Network engineers and Project Managers requiring a high performance serial to Ethernet interface for serial RS232 or RS485 based devices
- Environments where redundant network paths provided by Dual Ethernet interfaces are critical.
- Sites that require cost effective RS232/422/485 device connectivity in 48v DC environments
Why IOLAN SDSC Terminal Servers are the preferred choice:
- TrueSerial® delivers the most authentic serial connections across ethernet
- Universal, software selectable RS232/422/485 ( EIA-232/422/485 ) serial ports prevents mechanical tampering in the field
- High performance 400 MHz, 750 MIPS, 32 bit processor with integrated hardware encryption processor for the best throughput
- Clustering - Provides a single view of all out of band console ports. Ideal for large data centers
- Intelligent Power cycling of equipment with Perle Remote Power Switches
- Next Generation IP support (IPv6) for investment protection and network compatibility
- Primary/Backup host functionality enables automatic connections to alternate hosts should the primary TCP connection go down
- RJ45 serial ports with Cisco pinouts for use with common CAT5 "rolled" cabling
- EasyPort Web - Access equipment serial console ports by using your java-enabled Internet browser
- FIPS 140-2 - Cryptographic modules meet US Government NIST compliancy
- Dynamic DNS - Easy console management access from anywhere on the Internet
- Java-free browser access to remote serial console ports via Telnet and SSH
- Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
- Lifetime warranty - best investment protection available
- General Information
- Manufacturer
- Perle Systems, Inc
- Manufacturer Website Address
- http://www.perle.com
- Brand Name
- Perle
- Product Line
- IOLAN
- Product Series
- SDS
- Product Type
- Device Server
- Processor & Chipset
- Processor Speed
- 400 MHz
- Memory
- Standard Memory
- 64 MB
- Media & Performance
- Media Type Supported
- Twisted Pair
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Standard
- 10/100/1000Base-T
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Serial Port
- Yes
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 2
- Number of Serial Ports
- 32
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 44 mm
- Width
- 434 mm
- Depth
- 264 mm
- Weight (Approximate)
- 3.10 kg
- Miscellaneous
- Certifications & Standards
- Emissions:
- FCC Part 15, Subpart B, Class A
- CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
- ICES-003, Issue 4, February 2004 (Canada)
- EN55022:1998 + A1:2000 + A2:2003 Class A
- EN61000-3-2 : 1995, Limits for Harmonic Current Emissions
- EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker
- EN55024:1998 + A1:2001 + A2:2003
- EN61000-4-2: Electrostatic Discharge
- EN61000-4-3: RF Electromagnetic Field Modulated
- EN61000-4-4: Fast Transients
- EN61000-4-5: Surge
- EN61000-4-6: RF Continuous Conducted
- EN61000-4-8: Power-Frequency Magnetic Field
- EN61000-4-11: Voltage Dips and Voltage Interruptions
- IEC 60950-1 : 2005 (2nd Edition) + A1 : 2009 and
- EN 60950-1 : 2006 + A11 : 2009
- CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, First Edition April 1st 2003 (Recognized Component)
- Environmentally Friendly
- Yes
