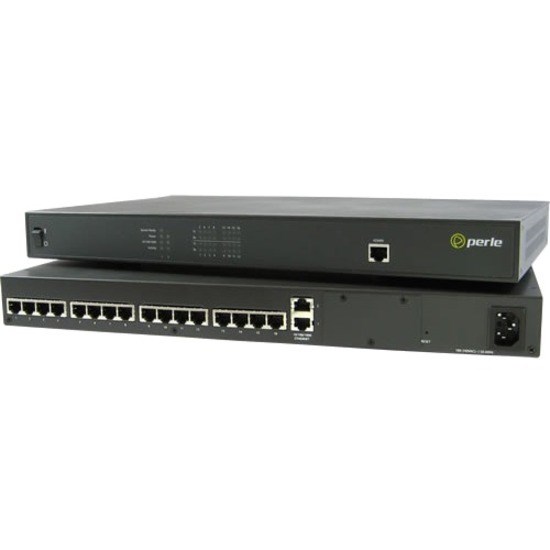

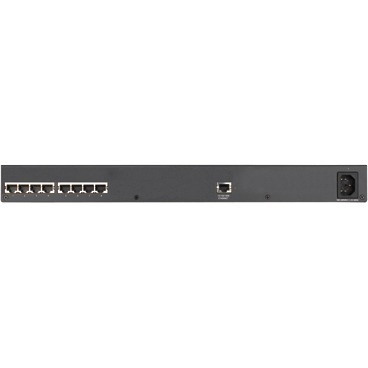

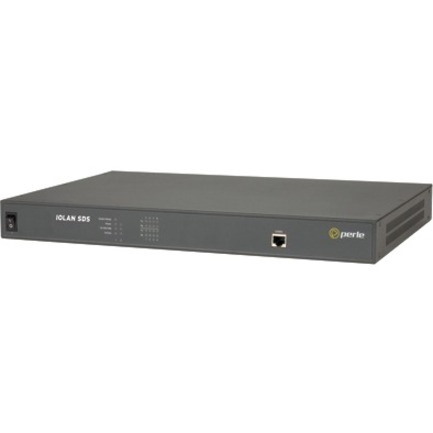

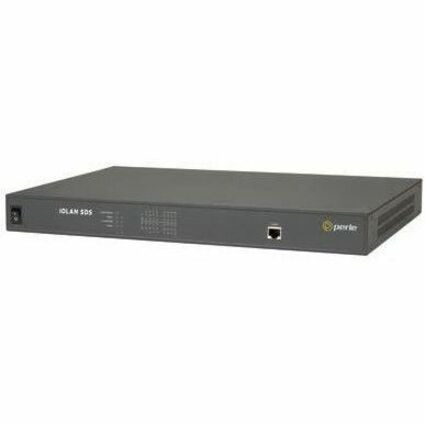

The IOLAN SDS Device Server (also used as a Terminal Server or Console Server) is the most advanced product for serial to Ethernet applications available.

Delivering the highest performance in a 1U form factor, an IOLAN SDS offers robust security, flexibility and next generation IP (IPv6) technology, ideal for applications that require remote serial device communication, data capture or monitoring. Available in 8 and 16 port sizes, the IOLAN SDS series has the right fit for your serial application needs.

Features and Benefits - SDS Serial Device Server

• TrueSerial® delivers the most authentic serial connections across Ethernet
• Universal, software selectable RS-232/422/485 (EIA-232/422/485) serial ports with RJ45 interface prevents mechanical tampering in the field
• 400Mhz, 750 MIPS, 32 bit processor* with integrated hardware encryption for the best performance on the market
• FIPS 140-2 - Cryptographic modules meet US Government NIST compliancy
• 1U rack form factor with flexible front, rear or DIN Rail mounting
• Indicators for network and serial interfaces for easy troubleshooting
• Plug & Play installation utility eliminates configuration hassles for all IOLAN's on your IP network
• Secure AES(256/192/128), 3DES, Blowfish, CAST128, ARCFOUR or ARCTWO data encryption across the LAN via SSH and SSL
• Advanced user authentication via RADIUS, TACACS+, LDAP, Kerberos, NIS and RSA prevent unauthorized access
• Advanced event management using Port buffering, Syslog, SNMP V3 and email event notification
• Advance management capabilities via a Windows Device Manager, HTTP, HTTPS/SSL/TLS, SSH and Telnet
• TruePort software provides true remote serial ports over an Ethernet LAN
• Share a serial port with multiple TCP or UDP servers
• ModBus Gateway
• Power over serial cable eliminates costs of a separate power installation
• Next Generation IP support ( IPv6 ) for investment protection and network compatibility
• Routing protocols including PPP, SLIP/CSLIP, CIDR RIPV2, RIPV1
• 15 Kv ESD provides protection against electrostatic discharge and power surges
• Protective solid steel enclosure
• Java-free browser access to remote serial console ports via Telnet and SSH
• Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear

Secure Serial to Ethernet Connectivity

The IOLAN SDS Device Server enables administrators to securely access remote serial console ports on equipment such as PBX, servers, routers, network storage equipment and security appliances through an IP network. Sensitive data such as credit card holder information is protected through standard encryption tools such as Secure Shell (SSH) and Secure Sockets Layer (SSL). Access by authorized users is assured via authentication schemes such as RADIUS, TACACS+, LDAP, Kerberos, NIS and RSA Security's SecurID tokens.

By using encryption technologies, an IOLAN serial device server protects sensitive and confidential data from a serial device such as a credit card reader before being sent across a corporate Intranet or public Internet. For compatibility with peer encryption devices, all of the major encryption ciphers such as AES, 3DES, RC4, RC2 and CAST128 are fully supported.

• General Information
• • Manufacturer
  • Perle Systems, Inc
  • Manufacturer Website Address
  • http://www.perle.com
  • Brand Name
  • Perle
  • Product Line
  • IOLAN
  • Product Series
  • SDS
  • Product Type
  • Device Server
